Description
Details
-Stable arc can make little spatter.
-High welding quality,deep penetration.
-Auto protection of over-voltage and over-current.
-Be able to work continuously,it can balance automatically when voltage is waving.
-Suitable for welding all kinds of basic welding rod.

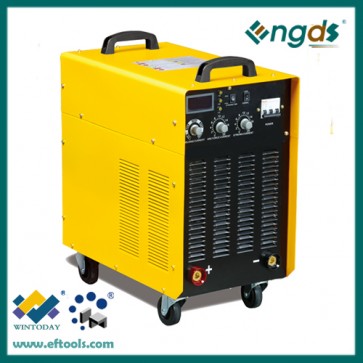

| Item# | 353062 | 353063 | 353064 |
| Power voltage(3PH) | 380-400V | 380-400V | 380-400V |
| Frequency | 50/60HZ | 50/60HZ | 50/60HZ |
| Rated input current | 12A | 17A | 23.5A |
| No-load voltage | 75V | 60V | 75V |
| Output current range | 20-315A | 20-400A | 20-500A |
| No-load consumption | 40KVA | 50KVA | 40KVA |
| Duty cycle | 60% | 60% | 60% |
| Efficiency | 85% | 85% | 85% |
| ower factor | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 |
| Insulation class | F | F | F |
| Usable electrode | 2.5-5mm | 2.5-6mm | 2.5-8mm |
| Protection class | IP21S | IP21S | IP21S |
| Weight | 45kg | 45kg | 55kg |
| Size | 645x380x705mm | 645x380x705mm | 645x380x705mm |
Packing&Shipping
According to the customer's need,we ship goods by air,sea and express.
Packiing:Standard Carton.
Delivery Detail:30-35 days after received the 30 percent deposit.
