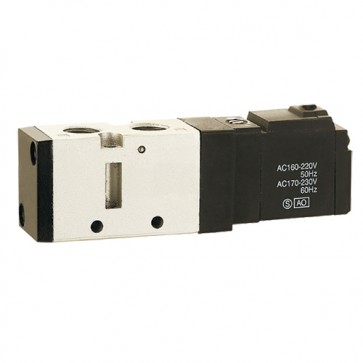

Lead wire canister purge valve solenoid description:
Name: Solenoid Valve
SKU: 356032-356037
Working Medium: Air(40 Micron Filtered)
Acting Type: Inner Guide Type
Working Pressure Range: 0.15~0.8MPa
Max Pressure Resistance: 1.2MPa
Working Temperature: 5~50℃
Voltage Range: ±10%
Power Consumption: AC:4.5VA DC:3W
Insulation&Protection Class: F Class.IP65
Max.Frequency: 5 Times/Sec
Shortest Activate Time: 0.05 Second
Working Form: Lead Wire or Connector Type
Lead wire canister purge valve solenoid features:
1. With the electromagnetic force on the casing of the iron core to complete, there is no dynamic seal, so leakage is easy to block.
2. Applicable to a variety of fluid media to meet different needs.
3. The selection of plastic coil can improve the safety in many environments.
4. The composition of the automatic control system is much simpler, so the price is much lower.
Lead wire canister purge valve solenoid advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. As an actuator of automated instrument, solenoid valves have seen sharp increase in use in recent years. It is an energy-saving product. As the solenoid valve is controlled by switch signal, it’s very convenient to connect it to computers. In today’s world where computer use is widespread and its price drops significantly, the advantages of the solenoid valve is even more obvious. With the electromagnetic force on the casing of the iron core to complete, there is no dynamic seal, so leakage is easy to block. And it applicable to a variety of fluid media to meet different needs.
