lubrication style 8 bar electric air compressor pump 184065

Model Number:184065
Type:Pump
Max pressure:8 Bar/115 P.S.I
Cylinder:51mm*2, 65mm*2, 65mm*3, 90mm*2; 80mm*3; 100mm*3.(Optional)
Rotation speed:1030/980/1140/860/920/880 R/Min(Optional)
Displacement:170/250/360/600/670/900/160 L/Min(Optional)
Power:1.5/2.2/3/4/5.5/7.5/11KW(2/3/4/5.5/7/10/15 HP)
N.W.:12/14/22.5/39.5/44.5/49/75Kg(Optional)

SKU: 184065

about Engdas Tools

engdas company

Description

Details

lubrication style 8 bar electric air compressor pump description:

SKU  Max Pressure  Cylinder Speed  Displacement  Power N.W. Measurement
 184065   8 Bar 115 P.S.I  51mm*2  1030R/Min  170L/Min 1.5KW/2HP 12Kg 380*300*360mm
184066 65mm*2 980R/Min 250L/Min 2.2KW/3HP 14Kg 350*290*330mm
184068 65mm*3 1140R/Min 360L/Min 3KW/4HP 22.5Kg 520*330*410mm
184070 90mm*2 860R/Min 600L/Min 4KW/5.5HP 39.5Kg  570*360*465mm
184072 80mm*3 980R/Min 670L/Min 5.5KW/7HP 44.5Kg  610*400*450mm
184075 90mm*2 920R/Min 900L/Min  7.5KW/10HP  49Kg 610*400*450mm
184077  100mm*3  880R/Min 160L/Min 11KW/15HP 75Kg 710*455*550mm

lubrication style 8 bar electric air compressor pump Images:

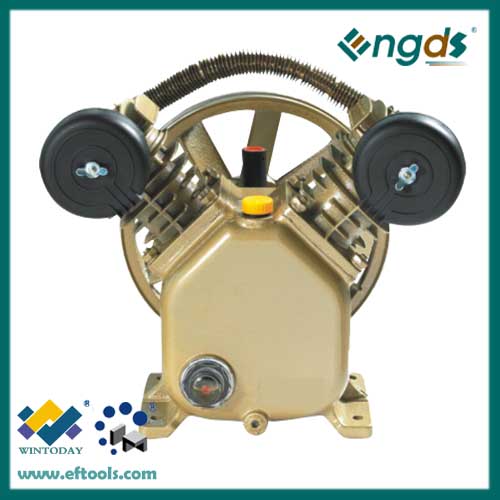

184065

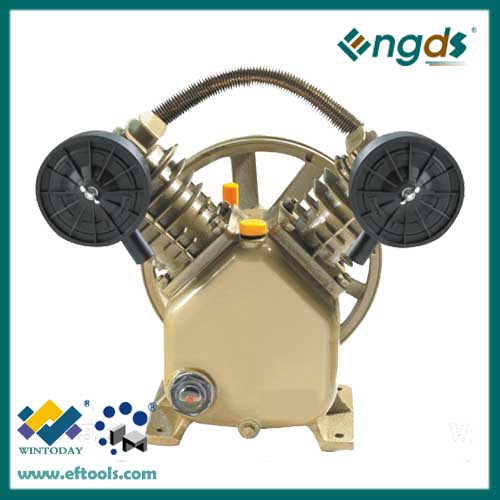

184066

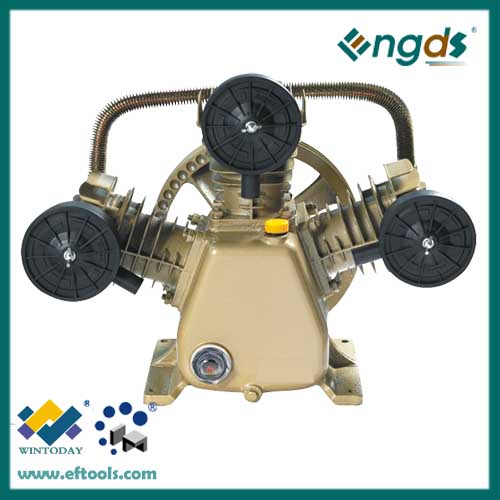

184068

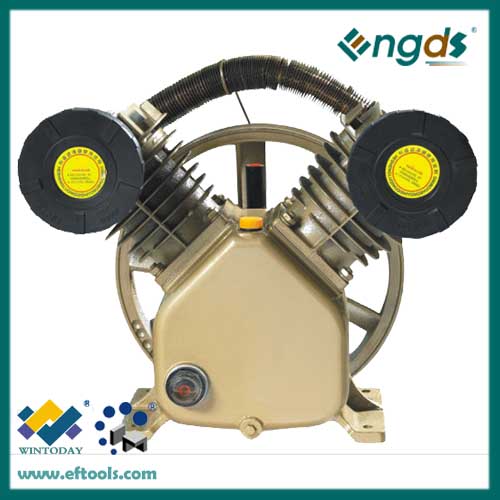

184070

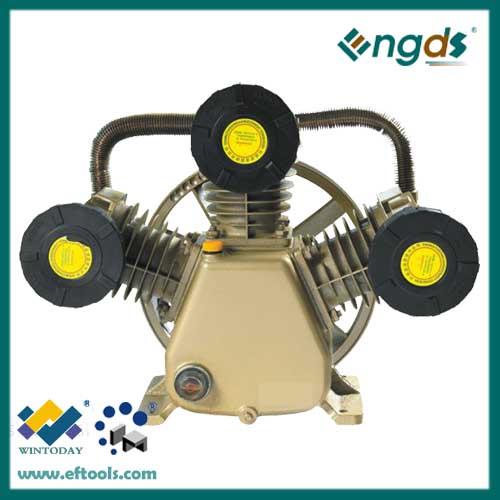

184072

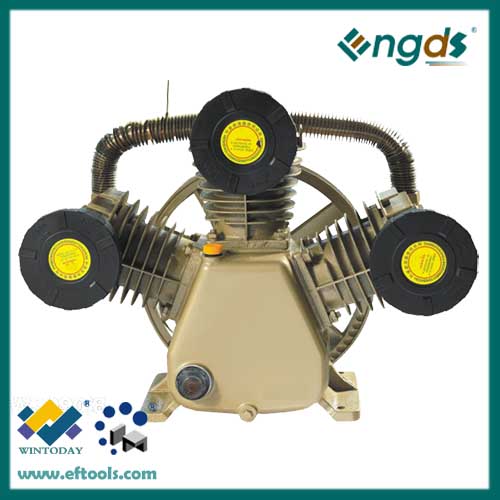

184075

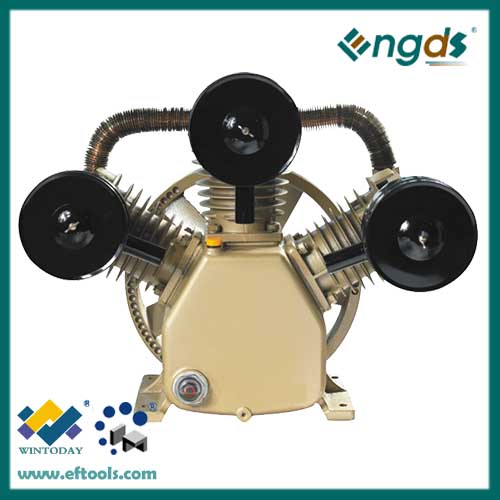

184077
