Description
Details

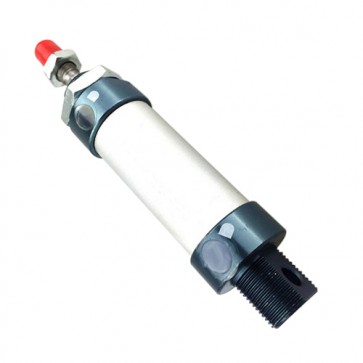

MAL air cylinder for sale Double action type :
| SKU | 357137 | 357138 | 357139 | 357140 | 357141 | |
| Bore | 16 | 20 | 25 | 32 | 40 | |
| Motion Pattern | Double Action | |||||
| Working Medium | Air | |||||
| Operating Pressure | 0.1-0.9Mpa(kgf/cm2) | |||||
| Ensured Pressure Resistance | 1.35Mpa(13.5kgf/cm2) | |||||
| Operating Temperature | -5-70℃ | |||||
| Buffer Type | NO | |||||
| Port Size | M5 | 1/8" | ||||
Feature:
1.The material is aluminum alloy which has good anti-corrosive preformance.
2.There are various types of rear cover can be chosen.
3.It has good lubrication and guide performance.
4.The front and rear cover is connected with the cylinder through the thread and the
firmness is good.
5.Piston adopts two-way sealing structure and the size is compact.
