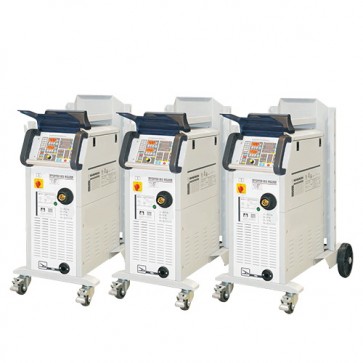

Descriptions of spot weld aluminium auto body mig welder:
| SKU | 601037 | 601038 | 601039 | 601040 |
| Input Voltage | 400V/230V | |||
| Rated Input Power | 10.5KVA | 10.5KVA | 10.5KVA | 10.5KVA |
| Rated Input Current | 15A | 15A | 15A | 15A |
| Output Voltage | 35-310A | 35-310A | 35-310A | 35-310A |
| Output Current | 15.7-31V | 15.7-31V | 15.7-31A | 15.7-31V |
| Duty Cycle Rate | 220-310A(100%-65%) | |||
| Non load Voltage | 50V | 50V | 50V | 50V |
| Efficiency | ≥90% | |||
| Power Factor | ≥0.95 | |||
| Insulation Grade | F | F | F | F |
| Frequency | 60-120KHz | 60-120KHz | 60-120KHz | 60-120KHz |
| Steel Wire | Dia 0.6-1.2mm | |||
| Aluminum Wire | Dia 0.8-1.2mm | |||
| Copper Wire | Dia 0.6-1.4mm | |||
| Wire Feeder | Four Roll Driven | |||
| Main Size | 93*35*83cm | 93*35*83cm | 94*51*117cm | 94*51*117cm |
| Weight | 94kg | 92kg | 102kg | 98kg |
Accesories of spot weld aluminium auto body mig welder:
1. Durable air tube
2. High quality chain
3. Multi-functional welding gun
4. High quality shield case and contact tip
5. 200g Anti-blocking agent
6. Durable fuse
7. Heating regulator
8. Professional aluminum welding gun
9. Welding gun holder
10. Caster and wheels
Features of spot weld aluminium auto body mig welder:
1. Pulsed function design, high efficiency and steady.
2. Welding steady without hurting auto body.
3. Less welding deformation and spatter.
4. Easy to welding different material auto body.
5. Suitable for auto maintenance, vehicle industry, sheet metal process industry and shipping engineering, etc.
6. Special four wheel feeder.
7. Hot sell useful control system.
