Description
Details

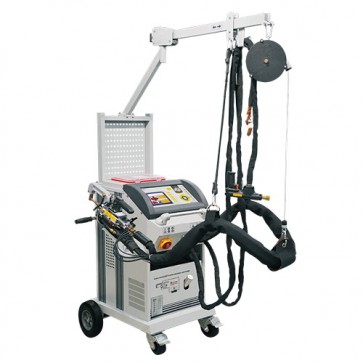

Description of dent pulling machine:
| SKU | 601074 | 601075 | 601076 | 601077 | 601078 | 601079 | 601080 |
| Input Voltage | 380V(50/60Hz) | 400V(50Hz) | |||||
| Input Power | 30KVA | 45KVA | 50KVA | 30KVA | |||
| Input Current | 60A | 32A | 38A | ||||
| Max Output Power | 9900A | 13000A | 14000A | 13000A | 16000A | ||
| Spot Welding Thickness | 1+1.5mm | 1+1.5mm | |||||
| Double Welding Thickness | 2.5+2.5mm | 3+3mm | 3+3+3mm | ||||
| Output Voltage | 1-13v | 1-15V | |||||
| Spottable Stud Dia | 4-9mm | 4-8mm | 4-9mm | ||||
| Protection Grade | IP21 | ||||||
| Pressure | 4-8kg | ||||||
| Welding Time Range | 0-99s | 0-700ms(Pulsed) | |||||
| Cable Length | 2.2+2m/2.5m/3.5m | 2..2+2m/3m/7m | 2.7+2.4m/3m/8m | ||||
| Size | 70*53*180cm | 74*61*180cm | 80*68*203cm | ||||
| Weight | 138kg | 168kg | 175kg | 118kg | 128kg | 130kg | |
| Inverter Frequency | / | 2000Hz | |||||
Features of dent pulling machine:
1. Full touch screen design.
2. Auto calculate welding data system.
3. Water cooled spot welder.
4. Easy to learn and operate.
5. Precision welding time.
6. Many kinds of welding method.
7. High quality welding for every time.
8. Multiple operating languages for the control system.
9. Spot welding for different kinds of material.
10. Special design C type welding gun which could rotate in 360 degrees.
11. Steady pressure with high quality welding quality.
12. Precision overheating and over current protection design.
13. Spot welding with double welding in one machine.
14. Complete with air filter and pressure regulator.
15. Hot sell high Frequency relay.
16. Automatic water cooled system.
17. Welding parameters calculating function.
18. Special welding gun, working without spatters.
19. Step by step opened and quadratic rapid closed welding gun.
20. Digital graphic LCD monitor.
21. Special gun cable support arm allows flexible movement with 360° rotation.
