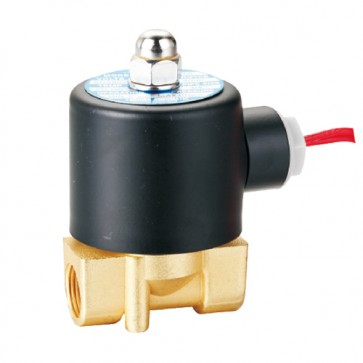

Normal close type 2 way solenoid valve description:
Name: Solenoid Valve

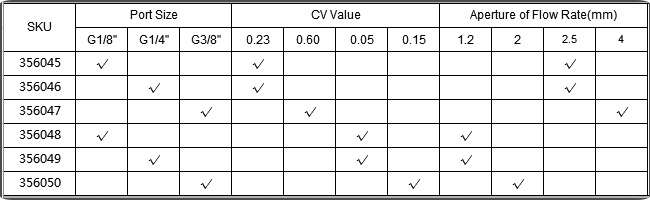

SKU: 356045-356050
Position And Way No.: Two-position Two-way
Type: Normal Close Type
Operation Fluid Viscosity: 20CST Below
Working Pressure Range: 0~2.0MPa
Max.Pressure Resistance: 1.0Mpa
Working Temperature: -5~80℃
Voltage Range: ±10%
Body Material: Brass/Stainless Stell
Material of Oil Seal: NBR,EPDM or VITON
Standard Voltage: DC12V/DC24V
/AC24V/AC36V/AC110V/AC220VAC380V(Optional)
Normal close type 2 way solenoid valve features:
1. The use of direct-acting diaphragm structure without pressure to start, expand its use of the field.
2. The use of flat diaphragm structure, enhancing the service life of the product.
3. The selection of plastic coil can improve the safety in many environments.
4. Applicable to a variety of fluid media to meet different needs.
5. Its own structure is simple, easy to install and maintain.
Normal close type 2 way solenoid valve advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. As an actuator of automated instrument, solenoid valves have seen sharp increase in use in recent years. It is an energy-saving product. As the solenoid valve is controlled by switch signal, it’s very convenient to connect it to computers. In today’s world where computer use is widespread and its price drops significantly, the advantages of the solenoid valve is even more obvious. The use of direct-acting diaphragm structure without pressure to start, so it expands its use of the field. And the use of flat diaphragm structure, it will enhance the service life of the product.
