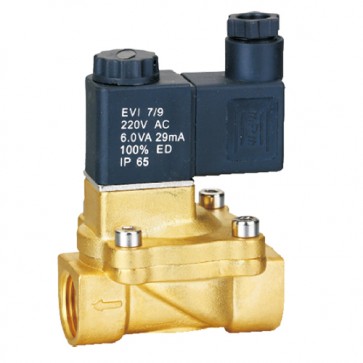

Normal close type solenoid valve 12v description:
Name: Solenoid Valve

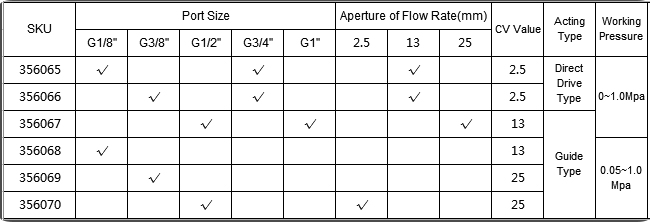

SKU: 356065-356070
Working Medium: Air,Water,Oil
Position And Way No.: Two-position Two-way
Type: Normal Close Type
Operation Fluid Viscosity: 20CST Below
Max.Pressure Resistance: 1.05Mpa
Working Temperature: -10~80℃
Voltage Range: ±10%
Power Consumption: AC:7VA/60Hz,9VA/50Hz;DC:6W
Insulation&Protection Class: F Class.IP65
Max.Frequency: 5 Times/Sec
Body Material: Brass
Material of Oil Seal: NBR
Standard Voltage: DC12V/DC24V
/AC24V/AC36V/AC110V/AC220VAC380V(Optional)
Normal close type solenoid valve 12v features:
1. The use of direct-acting diaphragm structure without pressure to start, expand its use of the field.
2. The use of flat diaphragm structure, enhancing the service life of the product.
3. Choosing aluminum alloy or brass for body material, more durable.
3. Fully sealed connection, no leakage phenomenon and not easy to be loosed.
4. There are a variety of specifications to choose from to meet more needs.
Normal close type solenoid valve 12v advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. As an actuator of automated instrument, solenoid valves have seen sharp increase in use in recent years. It is an energy-saving product. As the solenoid valve is controlled by switch signal, it’s very convenient to connect it to computers. In today’s world where computer use is widespread and its price drops significantly, the advantages of the solenoid valve is even more obvious. Choosing aluminum alloy or brass for body material, so it is more durable. And the fully sealed connection design, no leakage phenomenon and not easy to be loosed.
