Description
Details

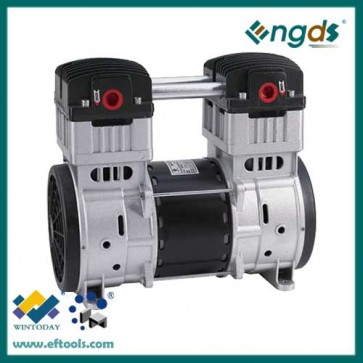

oil free electric 1.5hp 2hp air compressor pump (Pressure) description:
| SKU | 184082(1.1KW/1.5HP) | 184084(1.5KW/2HP) | |||
| Electrical Source | AC 50Hz | AC 60Hz | AC 50Hz | AC 60Hz | |
|
Compressor Performance (LPM@BAR) |
0 | 200 | 200 | 280 | 280 |
| 2.0 | 160 | 160 | 223 | 223 | |
| 4.0 | 137 | 137 | 192 | 192 | |
| 6.0 | 125 | 125 | 175 | 175 | |
| 8.0 | 103 | 103 | 145 | 145 | |
|
Maximum Pressure (Bar) |
Contiunous | 8.0 | 8.0 | 8.0 | 8.0 |
| Intermittent | 9.0 | 9.0 | 9.0 | 9.0 | |
| Restart | 1.0 | 1.0 | 1.0 | 1.0 | |
| Tempture | Min.( °C ) | -5 | -5 | -5 | -5 |
| Max.( °C ) | 40 | 40 | 40 | 40 | |
| Power | 1.1 | 1.1 | 1.5 | 1.5 | |
| Speed(RPM) | 1380 | 1680 | 1380 | 1650 | |
| Thermal Protector | Yes | Yes | Yes | Yes | |
| Net Weight(Kg) | 17.0 | 17.0 | 17.5 | 17.5 | |
oil free electric air compressor pump (Two-grade Vacuum) description:
| SKU | 184082 | 184084 | |||
| Electrical Source | AC 50Hz | AC 60Hz | AC 50Hz | AC 60Hz | |
|
Vacuum Performance (LPM@BAR) |
0 | 100 | 100 | 140 | 140 |
| -200 | 55 | 55 | 77 | 77 | |
| -400 | 30 | 30 | 42.3 | 42.3 | |
| -600 | 16.6 | 16.6 | 23.3 | 23.3 | |
| -800 | 9.5 | 9.5 | 12.8 | 12.8 | |
|
Vacuum (Mbar) |
Maximum | -980 | -980 | -980 | -980 |
| Restart | 0 | 0 | 0 | 0 | |
| Tempture | Min.( °C ) | -5 | -5 | -5 | -5 |
| Max.( °C ) | 40 | 40 | 40 | 40 | |
| Power | 0.6 | 0.6 | 0.75 | 0.75 | |
| Speed(RPM) | 1450 | 1750 | 1450 | 1720 | |
| Thermal Protector | Yes | Yes | Yes | Yes | |
| Net Weight (Kg) | 17.0 | 17.0 | 17.5 | 17.5 | |
