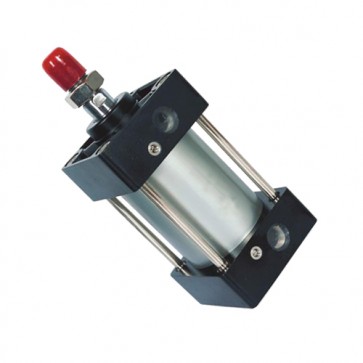

SC pneumatic piston cylinder Double Action Type :
SKU | 357209 | 357210 | 357211 | 357212 | 357213 | 357214 | 357215 | 357216 | 357217 | |
Bore | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | |
Motion Pattern | Double Action | |||||||||
Working Medium | Fitered Air | |||||||||
Fixed Type | Basic Type/FA/FB/CA/CB/LB/TC/TC-M | |||||||||
Operating Voltage Range | 1-9kgf/cm2 | |||||||||
Ensured Pressure Resistance | 13.5kgf/cm2 | |||||||||
Operating Temperature Range | 0-70℃ | |||||||||
Operating Speed Range | 50-800mm/s | |||||||||
Buffer Type | Adjustable Buffer | |||||||||
Buffer Stroke | 20 | 26 | 45 | |||||||
Port Size | G1/8" | G1/4" | G3/8" | G1/2" | G3/4" |
Feature:
1.There is no "leak" danger and high reliability.
2.It can accurately locate and have strong flexibility.
3.It can be used for high torque output because of its large load.
4.Working in high temperature and low temperature environment can make it have dusproof and waterproof ability.
5.It stops at a number of positions and has high control accuracy.
