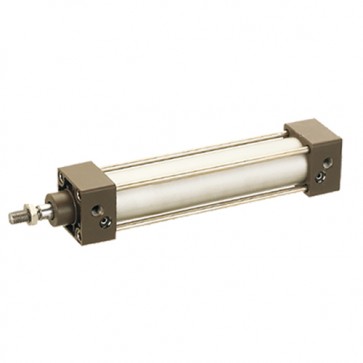

SC/SU air cylinder Double Action Type :
SKU | 357020 | 357021 | 357022 | 357023 | 357024 | 357025 | 357026 | 357027 | 357028 | 357029 | 357030 | |
Bore | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 320 | |
Motion Pattern | Double Action | |||||||||||
Working Medium | Air | |||||||||||
Fixed Type | Nomal Type/FA/FB/CA/CB/LB/TC/TC-M | |||||||||||
Working Pressure Range | 0.1-0.9Mpa | |||||||||||
Ensured Pressure Resistance | 1.35Mpa | |||||||||||
Operating Temperature Range | -5-70℃ | |||||||||||
Operating Speed Range | 30-800mm/s | |||||||||||
Buffer Type | Adjustable Buffer | |||||||||||
Buffer Stroke | 24 | 32 | 42 | 33 | ||||||||
Port Size | G1/8" | G1/4" | G3/8" | G1/2" | G3/4" | G1" |
Feature:
1.It has large load to adapt to the application of high torque output.
2.It has number of places to stop and high control precision.
3.Working in high temperature and low temperature.
4.There are various sizes to choose.
5.It has large output power and the output force is proportional to the square of the cylinder diameter.
