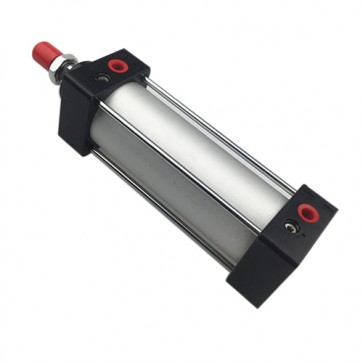

SC/SU rod pneumatic cylinder Double Action Type :
| SKU | 357112 | 357113 | 357114 | 357115 | 357116 | 357117 | |
| Bore | 32 | 40 | 50 | 63 | 80 | 100 | |
| Motion Pattern | Double Action | ||||||
| Working Medium | Air | ||||||
| Working Pressure | 0.1-0.9Mpa(1-9kgf/cm2) | ||||||
| Ensured Pressure Resistance | 1.35Mpa(13.5kgf/cm2) | ||||||
| Working Temperature Range | -5-70℃ | ||||||
| Buffer Type | Adjustable Buffer | ||||||
| Buffer Stroke | 24 | 32 | |||||
| Port Size | 1/8" | 1/4" | 3/8" | 1/2" | |||
Feature:
1.There is no "leak" danger , and the reliability is high.
2.It can be accurate positioning and the flexibility is strong.
3.It has large load which can adapt to the application of high torque output.
4.It stops at a number of positions and has high control accuracy.
5.Working in high temperature and low temperature environment can make it have dustproof
and waterproof ability.
