Description
Details

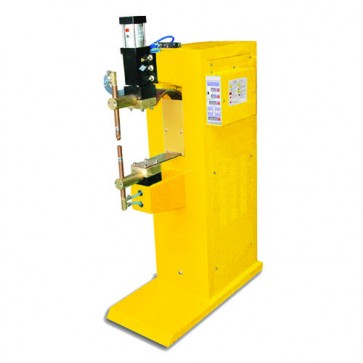

Spot welding machine with low noise description
| SKU | 353540 |
| Power Voltage | 380-400V |
| 100% duty cycle standard power | 11KVA |
| 50% duty cycle standard power | 16KVA |
| 20% duty cycle standard power | 25KVA |
| Secondary no load voltage | 1.7-3.5V |
| Secondary max short circuit current | 10.2KVA |
| Distance between welding arms | 190-190mm |
| Welding arm length | 390-390mm |
| Max. electrode | 250kg |
| Max. electrode | 0.5Mpa |
| Rated flowing of cooling water | 2L/Min |
Spot welding machine with low noise feature
1. The machine need less pressure to weld the material, because of the adjuster to control the slopping speed.
2. It is well to increase the welding speed with the direct connection of solenoid valve and air cylinder.
3. It is easy to adjust the different welding parameters with the computer controlling.
4. With the electrode arm is easily to move front and back based on the requirements.
5. The machine with lowe noise is healthy.
