Description
Details
Descriptions of hot water pump 175068-175075:
| SKU | Flow Rate | Pressure | Power | Rotation Speed | Crank Bore | Stroke | Temperture | |||
| (L/Min) | Gpm | Bar | P.S.I. | HP | KW | (R/Min) | (mm) | (mm) | (°C) | |
| 175068 | 11.07 | 2.92 | 100 | 1450 | 3 | 2.2 | 1450 | 18 | 10 | ≤85 |
| 175069 | 15.05 | 4.09 | 70 | 1015 | 3 | 2.2 | 1450 | 18 | 14 | ≤85 |
| 175070 | 15.5 | 4.09 | 100 | 1450 | 4 | 3 | 1450 | 18 | 14 | ≤85 |
| 175071 | 11.58 | 3.06 | 70 | 1015 | 3 | 2.2 | 1450 | 22 | 7 | ≤85 |
| 175072 | 14.06 | 3.71 | 70 | 1015 | 3 | 2.2 | 1450 | 22 | 8.5 | ≤85 |
| 175073 | 16.54 | 4.37 | 70 | 1015 | 4 | 3 | 1450 | 22 | 10 | ≤85 |
| 175074 | 23.15 | 6.12 | 70 | 1015 | 5.5 | 4 | 1450 | 22 | 14 | ≤85 |
| 175075 | 29.89 | 7.9 | 70 | 1015 | 7.5 | 5.5 | 1450 | 25 | 14 | ≤85 |

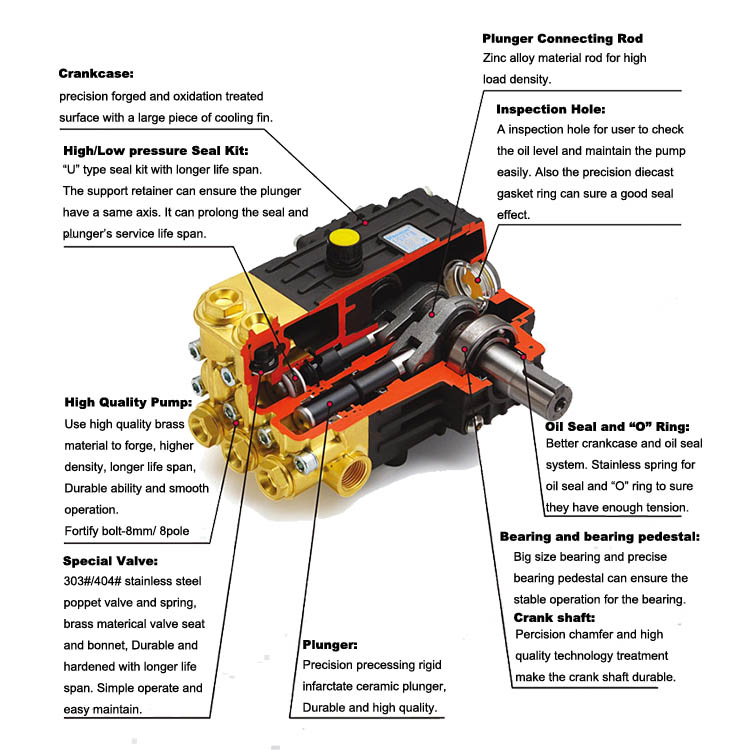

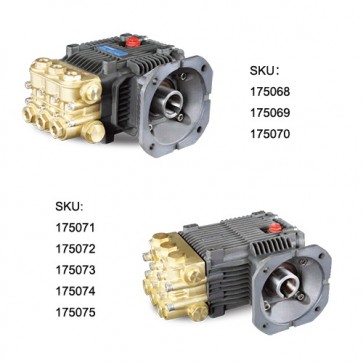

Detail images of hot water pump 175068-175075:
