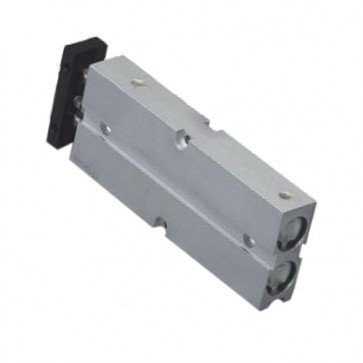

TN double rod cylinder pneumatic Double Action Type 357170

1.Fixed form
2.Mounting holes
3.Front-end anti-collision pad
4.Easy loading

SKU: 357170

about Engdas Tools

engdas company



TN double rod cylinder pneumatic Double Action Type :

SKU        357170 357171 357172 357173 357174
Bore 10 16 20 25 32
Motion Pattern Double Action
Working Medium Air
Operating pressure 0.1-0.9Mpa(1-9kgf/cm2)
Ensured Presure Resistance 1.35Mpa(13.5kgf/cm2)
Operating temperature -5-70℃
Buffer type Stationary buffering
Port Size M5×0.8 G1/8"

1.Front-end anti-collision pad can adjust the stroke and ease the impact.
2.Mounting holes are installed on three sides of the fixed plate for easy loading.
3.It can withstand a certain lateral load.
4.It has certain bending resistance and torsion resistance.
5.Fixed form of embedded body installation can save installation space.
