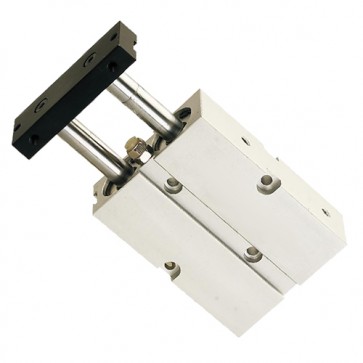

TN high pressure air cylinder Double Action Type 357095

1.High hardness
2.High piston concentricity.
3.Better seal
4.Composite PTFE wear-resisting ring

SKU: 357095

about Engdas Tools

engdas company



TN high pressure air cylinder Double Action Type :

SKU         357095 357096 357097 357098 357099
Bore 10 16 20 25 32
Motion Pattern   Double Action
Working Medium  Air
Operating Voltage Range  1-9kgf/cm2
Ensured Pressure Resistance  10.5kgf/cm2
Operating Temperature Range   -5-70℃
Operating Speed Range  100-500mm/s
Adjustable Stroke -10-0mm
Cushion Type   Fixed Type Buffer
Non Rotating Precision  0.4℃  0.3℃
Pipe Size   M5×0.8     G1/8"

1.It use a double layer of thickened plating which has high hardness.
2.Six-axis precision machining does not leak.
3.Compound PTFE wear-resisting ring can reduce the abrasion of piston seal ring.
4.Compound PTFE wear-resisting ring can improve the guidance of cylinder.
5.Rubber cushion cushion slows cylinder body impact and prolong cylinder life.
6.It has high piston concentricity and better seal.
