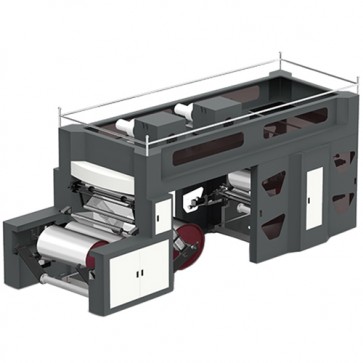

Two/Four/Six Colors Satellite Flexographic Printing Machine
SKU | Max. width of material(mm) | Max. printing speed(m/min) | Max. printing width(mm) | Thickness of plate(mm) | Suitable material | Machine weight(kg) | Printing color | Machine dimension(m) |
710021 | 600 | 10-150 | 560 | 2.38 | Papers, films, no-woven farbic, foils. | 2100 | 2 | 3.2x1.4x2.0 |
710022 |
800 |
10-150 |
760 |
2.38 |
Papers, films, no-woven farbic, foils. |
2300 |
2 |
3.2x1.6x2.0 |
710023 | 1000 | 10-150 | 960 | 2.38 | Papers, films, no-woven farbic, foils. | 2500 | 2 | 3.2x1.8x2.0 |
710024 | 600 | 10-150 | 560 | 2.38 | Papers, films, no-woven farbic, foils. | 4100 | 4 | 5.3x1.9x2.5 |
710025 | 800 | 10-150 | 760 | 2.38 | Papers, films, no-woven farbic, foils. | 4500 | 4 | 5.3x2.1x2.5 |
710026 | 1000 | 10-150 | 960 | 2.38 | Papers, films, no-woven farbic, foils. | 4900 | 4 | 5.3x2.3x2.5 |
710027 | 600 | 10-150 | 560 | 2.38 | Papers, films, no-woven farbic, foils. | 5100 | 6 | 5.3x1.9x3.0 |
710028 | 800 | 10-150 | 760 | 2.38 | Papers, films, no-woven farbic, foils. | 5500 | 6 | 5.3x2.1x3.0 |
710029 | 3kw/hr | 10-150 | 960 | 2.38 | Papers, films, no-woven farbic, foils. | 5900 | 6 | 5.3x2.3x3.0 |
Satellite flexographic printing machine sometimes becomes a common impression roller flexographic printing machine. Each printing unit of satellite flexographic printing machine moves around a common impression cylinder, which is installed in between the two panels. The printing material of satellite flexographic printing machine is printed around a common impression cylinder. Because the gears are directly driven, it is possible to print on paper or film, even if no special controls are attached. The printing process is stable. The satellite flexographic printing machine is often used to print color products.
Satellite flexographic printing machine can be adapted to a range of paper, up to 150 meters per minute.The printing machine can help customers increase productivity, and get more profit. The new satellite flexographic printing machine adopts the center roller embossing, chromatic high precision. It has high accuracy, and improve the printing quality. Satellite flexographic printing machine has a wide range of applications. The machine can be printing a variety of materials. It can print two/four/six colors of the material.
