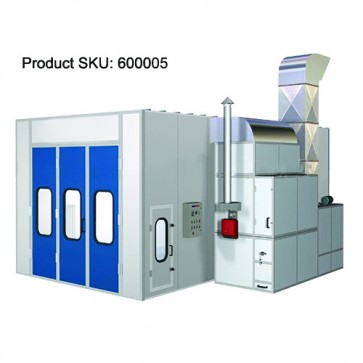

Water paint type water wash spray booth 600005
| Water Wash Spray Booth Room Structure | |
| Equipment Dimension | 699*556*333cm |
| External Room Dimension | 699*401*333cm |
| Internal Room Diemension | 687*389*265cm |
| Roof Meteral | 0.8mm galvanizing metal |
| Door Size | 300*260cm door |
| Door Configuration | 1. Door latch |
| 2. Aluminum hinge | |
| 3. EPDM seal strip | |
| 4. Toughened glass type observation window | |
| Room Configuration | 1. Front pillar is aluminum pillar. |
| 2. Rear pillar is white powder coating alumium board. | |
| 3. Other parts are galvanized board. | |
| Base Configuration | 1. 280mm Height |
| 2. Front pillar is 1.5mm folded aluminum board | |
| 3. Side pillars are 1.2mm folded board. | |
| Wall Configuration | 1. Coated 0.426mm color steel board on surface. |
| 2. 58mm thermokeeping rock wool board in the wall. | |
| Brace | 4 rows 80*40*2 rectangular brace. |
| Floor | 1. 2 rows 30*5 flat steel grille type bar. |
| 2. 3 rows 4mm tread plate. | |
| 3. Glass fibre paved down the grille typr bar. | |
| Ramp | 4 Ramp and 1 Step. |
| Water Wash Spray Booth Filtering System | |
| Ceiling Filter | Pre bag filter+Hepa C600 filter |
| Air Exhausting Filter | Glass fiber filter |
| Filtration efficiency | 99% |
| Filter Frame | 1. Powder coating C type steel |
| 2. 1.5mm aluminum crossbeam | |
| 3. 1.2mm aluminum longeron | |
| Noise | ≤80 dB(A) |
| TSP valve | ≤1.2mg/m³ |
| Water Wash Spray Booth Heating System | |
| Thermal exchanger | 1. 20Ka/h 14 tube thermal exchanger |
| 2. Argon arc welding method | |
| 3. Ternary cycle design | |
| 4. Explosion proof valve | |
| Temperture | ≤80°C |
| Heating time | (20°C-60°C) 5-6min |
| Fuel consumption | 4-5kg/unit |
| Heater Frame | 1. Section bar frame |
| 2. Galvanized board on frame surface. | |
| 3. Thermokeeping rock wool board in the wall | |
| Heat exchange efficiency | 93% |
| Water Wash Spray Booth Air Shower System | |
| Air shower | 1. 4 water-solubility blower in static pressure chamber |
| 2. Driven by 2 electric motor | |
| 3. SS compulsory blowing nozzle upward the top side lamp | |
| Water Wash Spray Booth Lighting System | |
| Lamp | 1. 8 sets 4*36W side lamps |
| 2. Philips lamp | |
| 3. Special rectifier | |
| LUX | ≥800 |
| Water Wash Spray Booth Electrical Control System | |
| Power | 13.2KW |
| Electrical System | 1. Over current protection |
| 2. Overload protection | |
| 3. Short circuit protection | |
| 4. Phase loss protection | |
| 5. Precision control box | |
| Water Wash Spray Booth Air Supply System | |
| Blower | 5.5KW Turbo air blower |
| Spary measure | 3.3 kg/h |
| Blower Base | 1. Dimension 1700*1250*1250 |
| 2. Air volume 25000 m³/h | |
| 3. Loaded Air flow 0.35m/s | |
| 4. Section bar frame | |
| 5. Pre bag filter | |
| 6. Rock wool board inside of the frame to reduce noise | |
| 7. Double-lay 0.8mm galvanized mask on frame surface | |
| Water Wash Spray Booth Air Exhausting System | |
| Air exhauster | 1. 5.5KW Turbo air blower |
| 2. Glass fiber filter | |
| 3. Active carbon adsorption | |
| Air exhauster frame | 1. 1900*1250*1450 |
| 2. Aluminum frame | |
| 3. Pneumatic leeward door | |
| 4. Section bar frame | |
| 5. Rock wool board inside of the frame to reduce noise | |
| 6. Pre bag filter | |
| 7. Double-lay 0.8mm galvanized mask on frame surface | |
| Air duct | 1. 4 section 750*1000*1250 air ducts |
| 2. 1 section 150° elbow air duct | |
| 3. 0.8mm galvanized metal | |
