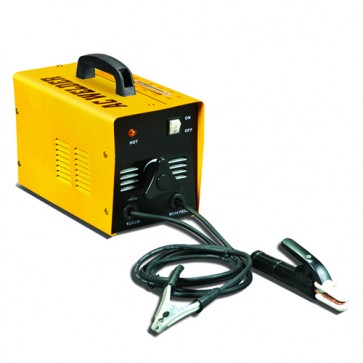

Portable arc welder equipment with high quality discription
| SKU | 353504 | 353505 | 353506 | 353507 | 353508 |
| Power voltage | 110/ 230/ 400V | ||||
| Rated output current | 130 A | 160 A | 180A | 200 A | 250 A |
| Rated input power | 6 KVA | 8 KVA | 9.5 KVA | 10.7 KVA | 14.2 KVA |
| Current range | 50-130 A | 60-160 A | 70-180 A | 80-200 A | 90-250 A |
| Usable electrode | 1.6-2.5 mm | 1.6-3.2 mm | 2-3.2 mm | 2.5-4 mm | 2.5-5 mm |
| Rated duty cycle | 10% | ||||
| Size | 470x270x320 mm | ||||
| Weight | 17 kg | 18 kg | 19 kg | 20 kg | 21 kg |
Portable arc welder equipment with high quality feature
1. It is convenient with the knob to adjust current randomly.
2. It is easier to use with the portable and air-cooling structure.
3. The welder equipment with light weight and small volume can reduce the work pressure.
4. It can improve the work efficiency that the light weight can reduce the power wastage.
Portable arc welder equipment with high quality advantage
The welder equipment has a small appearance. It means that the machine is easy to take. Without the advanced technology, the machine is always heavy. You need to take the material to a place to weld. So the machine is difficult to make life easier. The importance of the machine will be reduced. Now, the welder equipment is light to take. It can reduce the work pressure and improve the work speed. At that time, the welder equipment is the great choice to change the work environment. And take the huge benefit.
