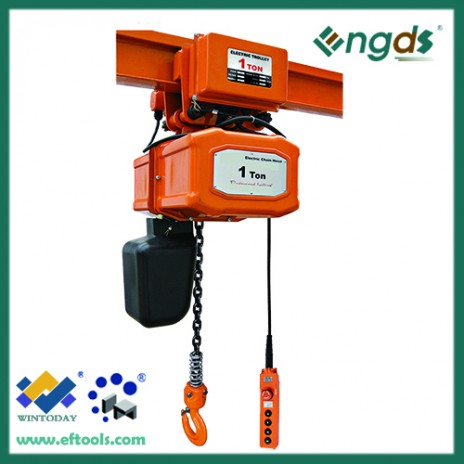

Description:
Model | 200031 | 200032 | 200033 | 200034 | 200035 | |
Capacity(T) | 0.25 | 0.5 | 1 | 2 | 3 | |
Standard Lift(m) | 3 | 3 | 3 | 3 | 3 | |
Lifting Speed(m/min) | 8 | 7 | 7 | 3.5 | 2.3 | |
Running Motor Power | 0.2 | 0.2 | 1.6 | 1.6 | 3 | |
Lifig Motor Power | 0.45 | 0.8 | 1.6 | 1.6 | 1.6 | |
Power Supply(V) | 1 Phase/ 220V(50Hz) | |||||
Control Voltage(V) | 24V | |||||
Insulation Grade | F(155°) | |||||
Rating | 40% | |||||
Spec. of Chain | Φ5mm×15 | Φ7.1mm×21 | ||||
No. of Chain | 1 | 1 | 1 | 2 | 3 | |
Working Level | M4 | M4 | M4 | M4 | M4 | |
Running Test Load(T) | 0.31 | 0.625 | 1.25 | 2.5 | 3.75 | |
Travelling Speed(m/min) | 20 | 20 | 20 | 20 | 15 | |
I-beam Width(mm) | 74-124 | 74-124 | 74-124 | 74-124 | 102-152 | |
Length of Cable(m) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |
Net Weight(Kg) | 60 | 88 | 95 | 100 | 135 | |
Extra weight per meter of extra lift(Kg) | 0.55 | 1.1 | 2.2 | 3.3 | 3.3 | |
Hmin(mm) | 450 | 520 | 520 | 640 | 720 | |
Dimension(mm) | A | 210 | 245 | 245 | 245 | 265 |
B | 210 | 245 | 245 | 245 | 265 | |
C | 116 | 710 | 710 | 710 | 710 | |
D | 104 | 490 | 490 | 490 | 490 | |
E | 262 | 40 | 40 | 40 | 40 | |
F | 24 | 34 | 34 | 40 | 45 |
Advantages:
1.For energy saving and easy use.
2.It can adjust the lifting speed easily.
3.With the Overload protection device and thermal Protector, the hoist have higher safety and reliability.
4.High lifting speed.
5.The controller is optional. Wireless controller also can be chosen.
6.Easy to develop the working efficiency and change the working condition.
7.It is suitable to working in low space.
8.Suitable to use in factories, mines, docks, shops and warehouses.
