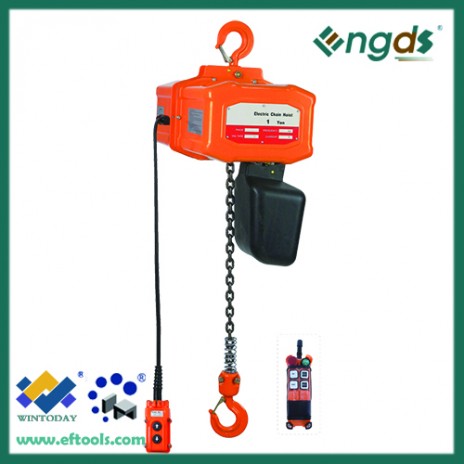

Description:
Model | 200019 | 200020 | 200021 | 200022 | 200023 | 200024 | |
Capacity(T) | 0.25 | 0.5 | 0.5 | 1 | 2 | 3 | |
Standard Lift(m) | 3 | 3 | 3 | 3 | 3 | 3 | |
Lifting Speed(m/min) | 8 | 4 | 7 | 6 | 3 | 2 | |
Motor Power | 0.45 | 0.45 | 0.8 | 1.2 | 1.2 | 1.2 | |
Power Supply(V) | 1 Phase-110V/220V/240V (50Hz)(Optional) | ||||||
Control Voltage(V) | 24V | ||||||
Insulation Grade | F(155°) | ||||||
Rating | 40% | ||||||
Spec. of Chain | 5mm×21 | 7.1mm×21 | |||||
No. of Chain | 1 | 2 | 1 | 1 | 2 | 3 | |
Working Level | M3 | M3 | M3 | M3 | M3 | M3 | |
Running Test Load(T) | 0.31 | 0.625 | 0.625 | 1.25 | 2.5 | 3.75 | |
Length of Cable(m) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |
Net Weight(Kg) | 22 | 25 | 55 | 60 | 65 | 70 | |
Extra weight per meter of extra lift(Kg) | 0.55 | 1.1 | 1.1 | 1.1 | 2.2 | 3.3 | |
Hmin(mm) | 430 | 450 | 500 | 520 | 630 | 710 | |
Dimension(mm) | A | 210 | 210 | 245 | 245 | 245 | 245 |
B | 210 | 210 | 245 | 245 | 245 | 245 | |
C | 116 | 92 | 158 | 158 | 124 | 124 | |
D | 104 | 128 | 142 | 142 | 176 | 176 | |
E | 262 | 262 | 350 | 350 | 350 | 350 | |
F | 24 | 24 | 34 | 34 | 40 | 45 |
Advantages:
1.With the Overload protection device and thermal Protector, the hoist have higher safety and reliability.
2.The small size and light weight makes the product easy to take.
3.This product has CE and GS certifications. Also it has ISO9001 authentication.
4.The power supply could be customized.
5.For energy saving and easy use.
6.High lifting speed.
7.The controller is optional. Wireless controller also can be chosen.
8.It is suitable to working in low space.
