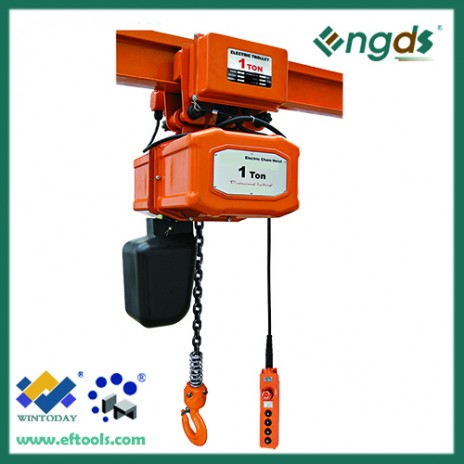

380V popular harbor freight engine chain hoist
Description:
| Model | 200025 | 200026 | 200027 | 200028 | 200029 | 200030 | |
| Capacity(T) | 0.5 | 1 | 2 | 3 | 5 | 10 | |
| Standard Lift(m) | 3 | 3 | 3 | 3 | 3 | 3 | |
| Lifting Speed(m/min) | 7 | 7 | 3.5 | 2.3 | 2.6 | 2.6 | |
| Motor Power | 0.8 | 1.6 | 1.6 | 1.6 | 3 | 3×2 | |
| Power Supply(V) | 3 Phase/ 380V(50Hz) | ||||||
| Control Voltage(V) | 24V | ||||||
| Insulation Grade | F(155°) | ||||||
| Rating | 40% | ||||||
| Spec. of Chain | Φ7.1mm×21 | Φ9mm×27 | |||||
| No. of Chain | 1 | 1 | 2 | 3 | 3 | 6 | |
| Working Level | M4 | M4 | M4 | M4 | M3 | M3 | |
| Running Test Load(T) | 0.625 | 1.25 | 2.5 | 3.75 | 6.25 | 12.5 | |
| Travelling Speed(m/min) | 20 | 20 | 20 | 15 | 15 | 15 | |
| I-beam Width(mm) | 74-124 | 74-124 | 74-124 | 102-152 | 102-152 | 102-152 | |
| Length of Cable(m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | |
| Net Weight(Kg) | 83 | 90 | 95 | 130 | 170 | 400 | |
| Extra weight per meter of extra lift(Kg) | 1.1 | 1.1 | 2.2 | 3.3 | 5.2 | 10.4 | |
| Hmin(mm) | 520 | 520 | 640 | 720 | 900 | 1200 | |
| Dimension(mm) | A | 245 | 245 | 245 | 245 | 265 | 265 |
| B | 245 | 245 | 245 | 245 | 265 | 265 | |
| C | 710 | 710 | 710 | 710 | 950 | 1250 | |
| D | 490 | 490 | 490 | 490 | 530 | 530 | |
| E | 40 | 40 | 40 | 40 | 52 | 52 | |
| F | 34 | 34 | 40 | 45 | 50 | 70 | |
Advantage:
1.This product is combining and applying technology from Japan and Germany.380V popular harbor freight engine chain hoist.
2.Easier operation and smart appearance.
3.This product has CE and GS certifications. Also it has ISO9001 authentication.
4.The power supply could be customized.
5.For energy saving and easy use.
6.High lifting speed.
7.The controller is optional. Wireless controller also can be chosen.
8.Easy to develop the working efficiency and change the working condition.
