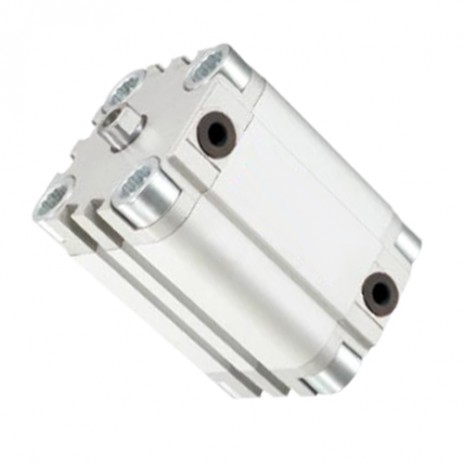

ADVU air ram cylinder Double Acting or Single Rod/Double Rod Type :
| SKU | 357063 | 357064 | 357065 | 357066 | 357067 | 357068 | 357069 | 357070 | 357071 | |
| Bore | 16 | 20 | 32 | 40 | 50 | 63 | 80 | 100 | ||
| Motion Pattern | Double Acting,Single Rod/Double Rod | |||||||||
| Fluid | Filtered Compressed Air | |||||||||
| Ensured Pressure Resistance | 1.5Mpa | |||||||||
| Operating Pressure Range | ADVU-P-A | 0.12-1.0Mpa | 0.1-1.0Mpa | 0.08-1.0Mpa | 0.06-1.0Mpa | |||||
| ADVU-P-A-S2 | 0.13-1.0Mpa | 0.12Mpa-1.0Mpa | 0.1-1.0Mpa | 0.8-1.0Mpa | ||||||
| Environment and Fluid Temp | -20-80℃(NO Freeing) | |||||||||
| Port Size | M5 | G1/8" | G1/4" | |||||||
| Buffering | Rubber Bumper | |||||||||
| Pistion Rod Thread | Female Thread | M4 | M5 | M6 | M8 | M10 | M12 | |||
| Male Thread | M8 | M10×1.25 | M12×1.25 | M16×1.5 | M20×1.5 | |||||
Feature:
1.It has beautiful appearance and strong output.
2.It is compact in size and suitable for small space.
3.It has short axial dimension and stroke.
4.It can withstand a larger lateral load.
5.It has small footprint and lightweight structure.
