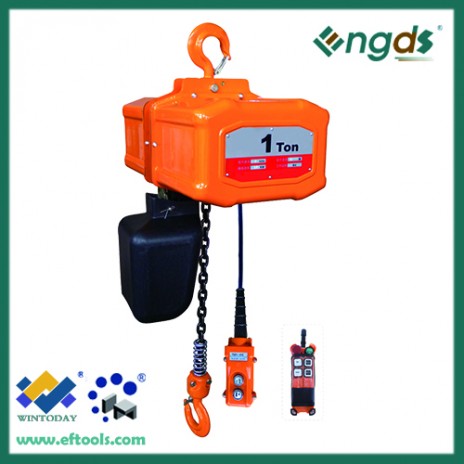

Description:
Model |
200015 | 200016 | 200017 | 200018 | |
Capacity(T) |
0.5 | 1 | 2 | 3 | |
Standard Lift(m) |
3 | 3 | 3 | 3 | |
Lifting Speed(m/min) |
7/2.3 | 6/2 | 3/1 | 2/0.7 | |
Motor Power |
0.8/0.27 | 1.2/0.4 | 1.2/0.4 | 1.2/0.4 | |
Power Supply(V) | 3 Phase/ 380V(50Hz) |
||||
Control Voltage(V) | 24V |
||||
Insulation Grade | F(155°) |
||||
Rating | 40% |
||||
Spec. of Chain | Φ7.1×21 |
||||
No. of Chain |
1 | 1 | 2 | 3 | |
Working Level |
M4 | M4 | M4 | M4 | |
Running Test Load(T) |
0.625 | 1.25 | 2.5 | 3.75 | |
Length of Cable(m) |
2.5 | 2.5 | 2.5 | 2.5 | |
Net Weight(Kg) |
53 | 58 | 63 | 68 | |
Extra weight per meter of extra lift(Kg) |
1.1 | 1.1 | 2.2 | 3.3 | |
Hmin(mm) |
550 | 520 | 630 | 710 | |
Dimension(mm) | A | 245 | 245 | 245 | 245 |
B | 245 | 245 | 245 | 245 | |
C | 158 | 158 | 124 | 124 | |
D | 142 | 142 | 176 | 176 | |
E | 350 | 350 | 350 | 350 | |
F | 34 | 34 | 40 | 45 |
Advantages:
1.Easy to develop the working efficiency and change the working condition.
2.The power supply could be customized.
3.This product has CE and GS certifications. Also it has ISO9001 authentication.
4.The small size and light weight makes the product easy to take.
5.It is suitable to working in low space.
6.High lifting speed.
7.The controller is optional. Wireless controller also can be chosen.
8.It can adjust the lifting speed easily.
