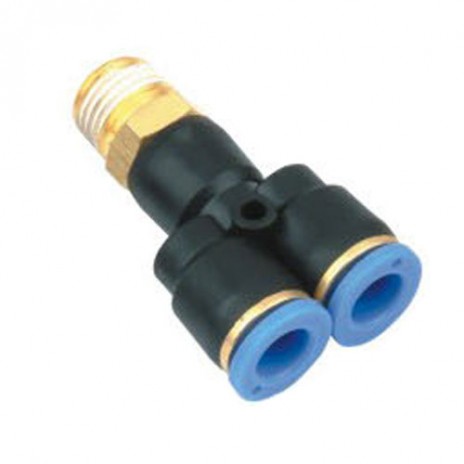

Competitive Price TPX TPKB TPLL TPH Quick Connect Coupling 354087

Competitive Price TPX TPKB TPLL TPH Quick Connect Coupling 354087-354090:


Features:
a.Working Fluid:Air
b.Maximum operating pressure:1.32MPa(13.55kgf/cm²)
c.Maximum working pressure:0~0.9MPa(0~9.2kgf/cm²)
d.Low pressure working pressure:-99.99~0Kpa(-750~0mmHg)
e.Environment and Fluid Temperature:0~60℃
f.Use the hose:PU hose,nylon tube.

Artikelposition: 354087

about Engdas Tools

engdas company

Beschreibung

Details

Competitive Price TPX TPKB TPLL TPH Quick Connect Coupling 354087-354090:

Inch Metric D R A B H J φ d
5/32-M5 04-M5 φ4 M5 3.5 39 10 12 φ3.2
5/32-01 04-01 φ4 1/8 7 41.5 10 12 φ3.2
5/32-02 04-02 φ4 1/4 9 43.5 14 12 φ3.2
5/32-03 04-03 φ 4 3/8 9 43.5 17 12 φ 3.2
1/4-M5 06-M5 φ6 M5 3.5 41 10 12.5 φ 4
1/4-01 06-01 φ6 1/8 7 43 12 12.5 φ4
1/4-02 06-02 φ6 1/4 9 45 14 12.5 φ4
1/4-03 06-03 φ6 3/8 9 45 17 12.5 φ4
1/4-04 06-04 φ6 1/2 11 48 21 12.5 φ4
5/16-01 08-01 φ8 1/8 7 46 14 14.8 φ4
5/16-02 08-02 φ8 1/4 9 48 14 14.8 φ4
5/16-03 08-03 φ8 3/8 9 48 17 14.8 φ4
5/16-04 08-04 φ8 1/2 11 51 21 14.8 φ4
3/8-01 10-01 φ10 1/8 7 54.5 17 18 φ4.5
3/8-02 10-02 φ10 1/4 9 56.5 17 18 φ4.5
3/8-03 10-03 φ10 3/8 9 56.5 17 18 φ4.5
3/8-04 10-04 φ10 1/2 11 59.5 21 18 φ4.5
1/2-01 12-01 φ12 1/8 7 56.5 21 22 φ4
1/2-02 12-02 φ12 1/4 9 58.5 21 22 φ4
1/2-03 12-03 φ12 3/8 9 58.5 21 22 φ4
1/2-04 12-04 φ12 1/2 11 60.5 21 22 φ4
/ 14-02 φ14 1/4 9 72 24 27 φ5
/ 14-03 φ14 3/8 9 72 24 27 φ5
/ 14-04 φ14 1/2 11 74 24 27 φ5
/ 14-06 φ14 3/4 15 80 24 27 φ5
/ 16-02 φ16 1/4 9 72 24 27 φ5
/ 16-03 φ16 3/8 9 72 24 27 φ5
/ 16-04 φ16 1/2 11 74 24 27 φ5
/ 16-06 φ16 3/4 15 80 27 27 φ 5
