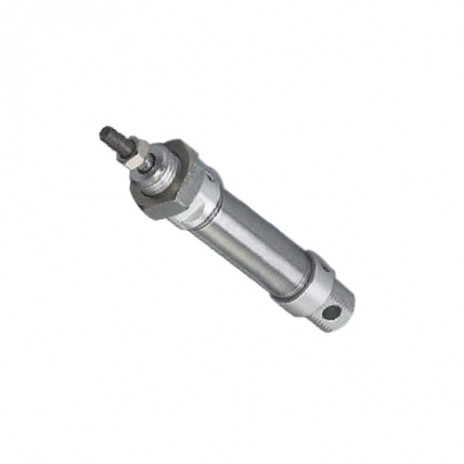

MA rod cylinder Double Action Type :
| SKU | 357142 | 357143 | 357144 | 357145 | 357146 | |
| Bore | 16 | 20 | 25 | 32 | 40 | |
| Motion Pattern | Double Action | |||||
| Working Medium | Air | |||||
| Operating Pressure | 0.1-0.9Mpa(1-9kgf/cm2) | |||||
| Ensured Pressure Resistance | 1.35Mpa(13.5kgf/cm2) | |||||
| Operating Temperature | -5-70℃ | |||||
| Buffer Type | No | |||||
| Port Size | M5 | 1/8" | ||||
Feature:
1.It is precision machined and inner wall of the cylinder is smooth.
2.The material is stainless steel which can resist corrosion and increase life.
3.It use high precision stainless steel body, so the strength is high.
4.The connection is reliable because of the riveting roll package structure that
the front and rear cover and the stainless steel body adopt.
5.The front and rear cover with fixed type anti-collision pad can reduce the reversing
impact of the cylinder.
