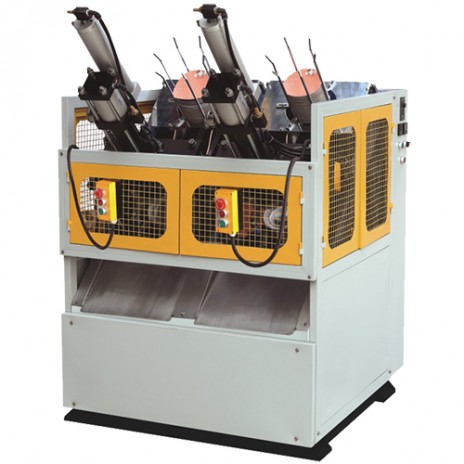

Professional Medium Speed Paper Plate Forming Machine
SKU | 710016 |
Paper plate size | 5-11inches (mold exchangeable) |
Paper material |
150-400g/m² Paper/Paperboard/Aluminum foil coated paper/One side PE coated paper or other |
Speed | 60-80pcs/min (double work station) |
Power | 4kw |
Power source | 220v 50hz |
Power | 3kw |
Air pressure | 0.8Mpa |
Air consumption | 0.6m³/min |
Weight | 600kg |
Overall dimension | 1200x1600x1900mm |
Medium speed paper plate forming machine is invented based on the market need and independent development. The machine has integrated the pneumatic and the mechanic technologies. The machine has faster speed, much safety performance. Medium speed paper plate forming machine also is easy to operate and has low consumption.
We adopt the high efficiency pressurized cylinder. The maximum pressure can reach five tons. It is more efficiency and eco friendly than the traditional hydraulic cylinders.
Medium speed paper plate forming machine runs automatically from air sucking. Next, paper feeding, forming heating. Then, automatic dish and temperature control. Last discharging and counting.
It is widely used to make paper plate of aluminum foil laminated material. It can also make different shapes by changing different moulds. The plates can be made in round, rectangle, square, circular or irregular shape.
Medium Speed Paper Plate Forming Machine Features
- High efficiency pressurized cylinder, maximum pressure up to five tons.
- Automatic paper feeding, forming heating, automatic dish and temperature control, automatic counting.
-Through the exchange of mould, as raw material in paper or aluminum foil can produce different specification and shapes of round paper disc tray, square tray paper plates.
- New invention of this model is we adopt the mechanical driven system for the paper sucking and delivering, which can save the air greatly.
- With safety cover, ensure the safe operation of this medium speed paper plate forming machine.
- It is the professional paper plate forming machinery.
- Double separate working stations.
- High speed and stable working.
The medium speed paper plate forming machine will be covered by a nylon to separate the water and dust. And then load in the wooden case, which ensure the safety during the sea transportation.
