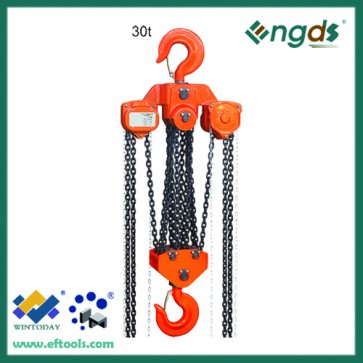

Description:
| Model | 201050 | 201051 | 201052 | 201053 | 201054 | 201055 | 201056 | |
| Capacity(T) | 12 | 15 | 20 | 30 | 50 | 75 | 100 | |
| Standard Lift(m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Running Testload(Kn) | 150 | 187.5 | 250 | 375 | 625 | 937 | 1250 | |
| Chainpull to Liftpull Load(N) | 420 | 430 | 420*2 | 450*2 | 450*2 | 450*2 | 450*2 | |
| No. of Chain | 4 | 6 | 8 | 12 | 22 | 30 | 38 | |
| Load Chain Diameter(mm) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| Extra Weight per meter of Extre Lift(Kg) | 9.8 | 14.2 | 19.6 | 28.3 | 50 | 68 | 87 | |
| Dimension(mm) | A | 181 | 181 | 192 | 330 | 410 | 570 | 675 |
| B | 365 | 485 | 630 | 670 | 900 | 900 | 900 | |
| C | 798 | 920 | 890 | 1000 | 1950 | 2100 | 2300 | |
| D | 57 | 84 | 84 | 84 | 130 | 160 | 180 | |
Advantages:
1.This product has CE and GS certifications. Also it has ISO9001 authentication.
2.The small size and light weight makes the product easy to take.
3.The chain is adopt the heat-treated aluminum alloy steel.
4.Strong hot forged hook.
5.High FS (FACTOR OF SAFETY) and long life span.
