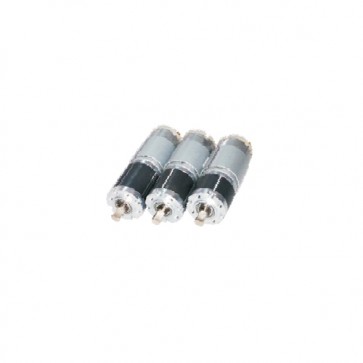

Typical Applications
Peristaltic pump,Micro CNC equipment,ATM bank automatic system,Card conveyors,Auto shutter,Binding machine,Mimeograph,Office equipment,Household appliances,Automatic actuator.
| Gearbox Data | |||||
| No. of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4 stages reduction | 5 stages reduction |
| Reduction ratio | 4, 4.75 | 16, 19, 22.5 | 64, 76, 90, 107 | 256, 304, 361 428, 509 |
1024, 1263, 1444 1500, 2036, 2418 |
| Gearbox length "L"mm | 22 | 27.1 | 32.2 | 37.3 | 42.4 |
| Max.Gear running torque | 5.0Kgf.cm | 10.0Kgf.cm | 25Kgf.cm | 25Kgf.cm | 25Kgf.cm |
| Max.Gear breaking torque | 15.0Kgf.cm | 30Kgf.cm | 75Kgf.cm | 75Kgf.cm | 75Kgf.cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
| Motor data | |||||||||
| Motor name | Rated Volt.(V) | No load | Load torque | Stall torque | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | ||
| 171029 | 12 | ≤150 | 4500 | ≤470 | 3700 | 90 | 3.4 | 620 | 2500 |
| 171030 | 12 | ≤190 | 6000 | ≤950 | 5420 | 132 | 7.5 | 1010 | 5500 |
| 171031 | 24 | ≤70 | 4500 | ≤230 | 3852 | 92 | 3.5 | 603 | 1100 |
| 171032 | 24 | ≤90 | 6000 | ≤450 | 5456 | 134 | 7.5 | 1017 | 2720 |
| After connecting motor and gearbox which is named gearmotor the output torque:motor torque X reduction ratio X gearing efficiency;output speed:motor speed/reduction ratio. | |||||||||
Note
1.Motor can be installed with magnetic encorder.
2.Standard output shaft after reducing:φ 6.0mm,other size of the output shaft can make as client
request.
3.Chart only for reference,products shall prevail the entity.
