Description
Details

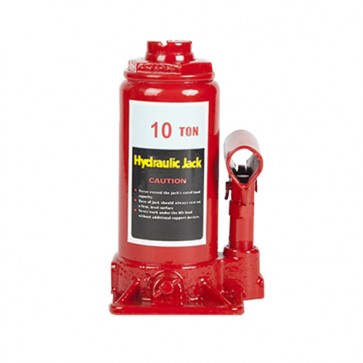

2-50 T High Quality Efficient Hydraulic Jack Data
| Product | Efficient Hydraulic Jack | ||||
| SKU | Lifting Weight (T) | Min Height (mm) | Lifting Height (mm) | Adjust Height (mm) | Max Height (mm) |
| 320066 | 2 | 148 | 80 | 50 | 278 |
| 320067 | 4 | 180 | 110 | 50 | 340 |
| 320068 | 6 | 200 | 125 | 60 | 385 |
| 320069 | 8 | 200 | 125 | 60 | 385 |
| 320070 | 10 | 200 | 125 | 60 | 385 |
| 320071 | 12 | 210 | 125 | 60 | 395 |
| 320072 | 16 | 225 | 140 | 60 | 425 |
| 320073 | 20 | 235 | 145 | 60 | 440 |
| 320074 | 32 | 255 | 150 | / | 405 |
| 320075 | 50 | 255 | 150 | / | 405 |
2-50 T High Quality Efficient Hydraulic Jack Packing
| SKU | Package | N.W. (KG) | 1x20' Container (pcs) |
| 320066 | Color Box | 2.1 | 7500 |
| 320067 | Color Box | 3.2 | 4800 |
| 320068 | Color Box | 4.2 | 3700 |
| 320069 | Color Box | 5.3 | 3100 |
| 320070 | Color Box | 5.7 | 2848 |
| 320071 | Color Box | 7 | 2400 |
| 320072 | Color Box | 8 | 2040 |
| 320073 | Color Box | 10.5 | 1588 |
| 320074 | Carton | 14 | 1100 |
| 320075 | Carton | 21 | 750 |
2-50 T High Quality Efficient Hydraulic Jack Features
1. The base is thick, it is more stable when we use the Jack.
2. The high quality screw can adjust the height and the screw do not easy to be corroded.
3. Use the high quality steel processing, ensure the rate tonnage, the use of safety.
4. The top of jack expands the friction surface, which has a better effect on anti-skidding.
5. The red lacquer is very tight, it is good for anti-corrosion.
2-50 T High Quality Efficient Hydraulic Jack
When you use two or more hydraulic jack lifting operation at the same time, the workers must be unified command and coordination at the same time lifting. If you do not lift the heavy uniform, the heavy will fall down. You should first try to lift a part of the heavy. Then carefully check the hydraulic jack without mistake. Last you can continue to lift the heavy. When the heavy is lift you should find some hard things sustain the heavy.
