2000~5000 series air filter systems descriptions:

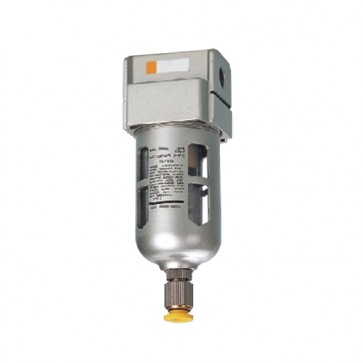

Name: 2000~5000 series air filter systems
SKU: 355135-355143
Ensured Pressure Resistance: 1.5MPa
Hightest Working Pressure: 1.0MPa
Ambient and Fluid Temperature: 5~60℃
Filter Precision: 25µm/5μm/50μm
Filter Material: Brass/PE
Accessory: Bracket
Body Material: Prolycarbanate
Protective Cover: Available
Specifications | ||||
Model | Rated Flow(L/Min) | Port Size(G) | Bowl Capacity(cm3) | Weight(kg) |
355135 | 750 | 1/8'' | 15 | 0.18 |
355136 | 1/4'' | |||
355137 | 1500 | 1/4'' | 20 | 0.26 |
355138 | 3/8'' | |||
355139 | 4000 | 3/8'' | 45 | 0.52 |
355140 | 1/2'' | |||
355141 | 6000 | 3/4'' | 45 | 0.57 |
355142 | 7000 | 3/4'' | 130 | 1.04 |
355143 | 1'' |
2000~5000 series air filter systems features:
1. Filtration accuracy of 25µm/5μm/50μm is available to meet the needs of different environments.
2. Stainless steel bracket, so more stable and more relieved to use.
3. High-quality filter so its filter effect is better and it also has a longer lifetime.
4. Exquisite appearance, surface oxidation spray treatment, more durable and corrosion resistant.
5. Water cup outside has the high-strength plastic protective cover, more safe and reliable.
2000~5000 series air filter systems advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.What is the advantages of the filter? Our filters are designed for the removal of solid contaminants and the separation of bulk liquids. The filters are designed for protecting critical applications and expensive pneumatic equipment by preventing oil aerosols and sub-micronic particles from damaging expensive components. And the filtration accuracy of 25µm/5μm/50μm is available to meet the needs of different environments. Besides, the water cup outside has the high-strength plastic protective cover, so it is more safe and reliable.
