8-Combined group valve solenoid popular description:

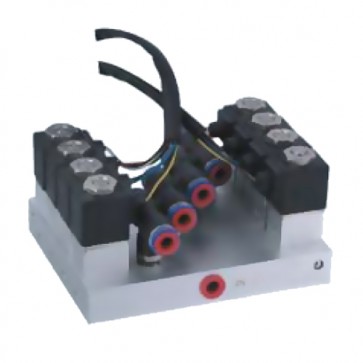

Name: 8-Combined group solenoid valve
SKU: 356258
Port Size: G1/8"
Working Pressure Range: 0~0.05MPa
Max Pressure Resistance: 0.1MPa
Working Temperature: -5~80℃
Voltage Range: ±10%
Power Consumption: DC:12V 2.8W
Insulation&Protection Class: F Class.IP65
Max.Frequency: 20Times/Sec
Working Form: Lead Wire Type
Acting Type: Direct Drive Type
Type: Normal Close Type
8-Combined group valve solenoid popular features:
1. The composition of the automatic control system is much simpler, so the price is much lower.
2. Its own structure is simple, easy to install and maintain.
3. The use of direct-acting diaphragm structure without pressure to start, expand its use of the field.
4. The selection of plastic coil can improve the safety in many environments.
8-Combined group valve solenoid popular advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. As an actuator of automated instrument, solenoid valves have seen sharp increase in use in recent years. It is an energy-saving product. As the solenoid valve is controlled by switch signal, it’s very convenient to connect it to computers. In today’s world where computer use is widespread and its price drops significantly, the advantages of the solenoid valve is even more obvious. The composition of the automatic control system is much simpler, so the price is much lower. And its own structure is simple, easy to install and maintain.
