F.R.L combination pneumatic control system components descriptions:
Name: F.R.L combination pneumatic control system components
SKU: 355262-355266
Operating Fluid: Air
Filtering elemet roughness: 40µm
Pressure Regulating Range: 0.05~0.85MPa
Max Adjustable Pressure: 0.95MPa
Ensured Pressure Resistance: 1.5MPa
Operating Temperature Range: 5~60℃
Suggested Lube: ISO VG32 or Same Grade Oil
Body material: Aluminum die casting forming
Body cup material: PE
Protective cup cover: Steel
Specifications | ||||

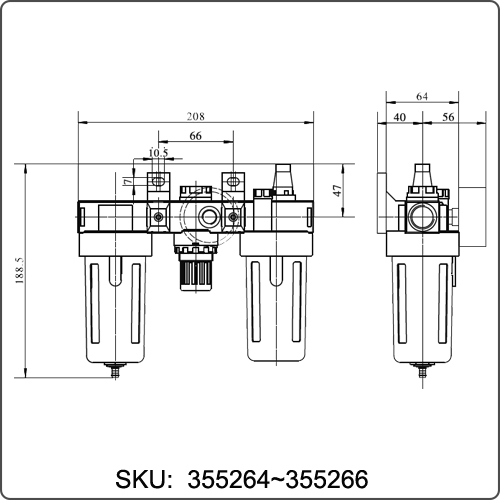

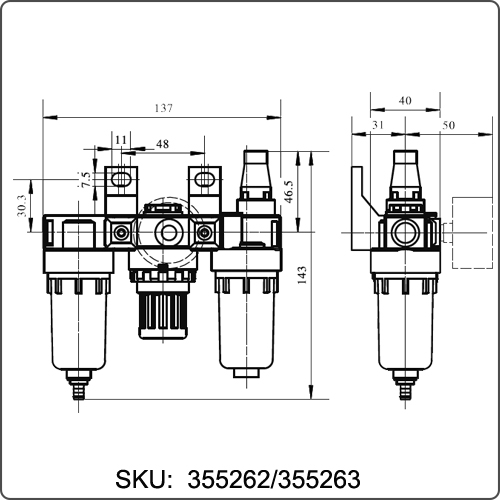

Model | Port Size(G) | Capacity of Filter Cup | Capacity of Oil Feed Cup | Weight(kg) |
355262 | 1/8'' | 15CC | 25CC | 0.47 |
355263 | 1/4'' | |||
355264 | 1/4" | 60CC | 90CC | 1.22 |
355265 | 3/8" | |||
355266 | 1/2" |
Air filter combination F.R.L oil mist system features:
1. The water cups and oil cups are made of die-cast aluminum alloy, it is used more widely compared to conventional products which is made from polycarbonate.
2. The interior is designed to make the product more durable and more comfortable.
3. Containing resistance to the mist, the oil in the oil cup fully atomized into particles, so that the piston fully lubricated, thereby extending the product life and saving fuel consumption.
4. High-quality filter so its filter effect is better and it also has a longer lifetime.
5. Exhaust treatment is simple, so it does not pollute the environment and low cost.
Air filter combination F.R.L oil mist system advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.Our filter combination are the perfect choice for the most demanding applications. By combining these three items, you will enjoy the excellent regulator flow characteristics with minimal pressure drop and high quality lubrication to your vital pneumatic components.The water cups and oil cups are made of die-cast aluminum alloy, it is used more widely compared to conventional products which is made from polycarbonate. And it containing resistance to the mist, the oil in the oil cup fully atomized into particles, so that the piston fully lubricated, thereby extending the product life and saving fuel consumption.
