Air source treatment processor air lubricator descriptions:

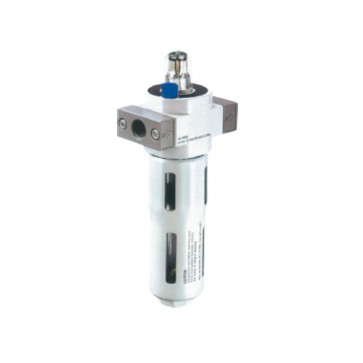

Name: Air source treatment processor air lubricator
SKU: 355435-355442
Oil Cup material: PC
Body material: Zinc die-casting
Working medium: Compressed air
Mounting type: Pipe mounting or foot mounting
Recommended Oil Use:Turbine NO.1 Oil ISOVG32
Hightest Working Pressure: 16bar
Working temperature range: 0~60℃
Maximum capacity of condensate fluid: 22ml
Air source treatment processor air lubricator features:
1. The user can always add lubricants in the case of the of smooth air.
2. Complete size specifications to meet different needs.
3. Containing resistance to the mist, the oil in the oil cup fully atomized into particles, so that the piston fully lubricated, thereby extending the product life and saving fuel consumption.
4. The water cups and oil cups are made of die-cast aluminum alloy, it is used more widely compared to conventional products which is made from polycarbonate.
5.Fine oil mist to ensure the effective protection and extended parts life.
Air source treatment processor air lubricator advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use. A lubricator adds controlled quantities of oil into a compressed air system to reduce the friction of moving components. And Our lubricators inject an oil aerosol into the flowing air stream to automatically provide the proper amount of internal lubricant to vital pneumatic components.Besides, The user can always add lubricants in the case of the of smooth air. And the complete size specifications to meet different needs.What is more, Containing resistance to the mist, the oil in the oil cup fully atomized into particles, so that the piston fully lubricated, thereby extending the product life and saving fuel consumption.
