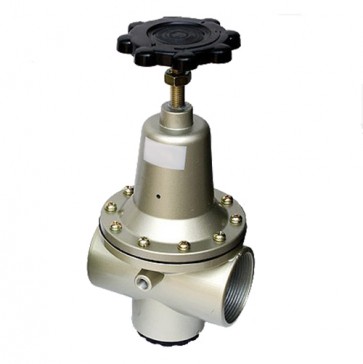

Aluminum alloy pressure regulating valve adjustment descriptions:
Name: Aluminum alloy pressure regulating valve adjustment
SKU: 355302-355308
Working medium: Air
Body Material: Aluminum alloy
Ensured Pressure Resistance: 15.0kgf/cm2
Hightest Working Pressure: 9.5kgf/cm2
Pressure Regulating Range: 0.5~8kgf/cm2
Working Temperature Range: 5~60℃

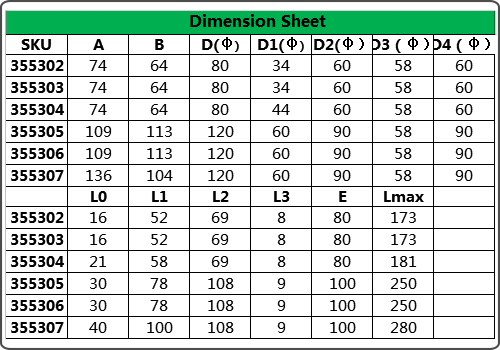

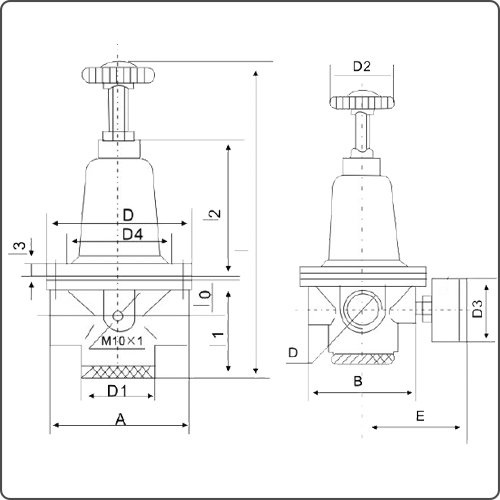

Specifications | |
SKU | Port Size |
355302 | 1/8'' |
355303 | 3/8" |
355304 | 1/2" |
355305 | 3/4" |
355306 | 1" |
355307 | 11/2” |
355308 | 2” |
Aluminum alloy pressure regulating valve adjustment features:
1. The surface is very smooth and well arranged, more comfortable to use.
2. Choosing aluminum alloy for body material, more durable.
3. Complete size specifications to meet different needs.
4. Fine screw holes can better regulate the valve pressure, so that the air pressure close to constant.
5. Exquisite appearance, surface oxidation spray treatment, more durable and corrosion resistant.
6. Self regulating pressure control valvePressure adjustment is stable and its setting is precise.
Aluminum alloy pressure regulating valve adjustment advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use. The greatest advantage that the regulator offers is the ease of use. Because a regulator operates when one capacitor each is simply attached to the input and output sides, in substance little design is needed. And the modern design techniques and High quality material processes have enabled our regulators to remain the best choice for a number of applications.The surface is very smooth and well arranged, so it is more comfortable to use. And the fine screw holes can better regulate the valve pressure, so that the air pressure close to constant. What is more, Pressure adjustment is stable and its setting is precise.
