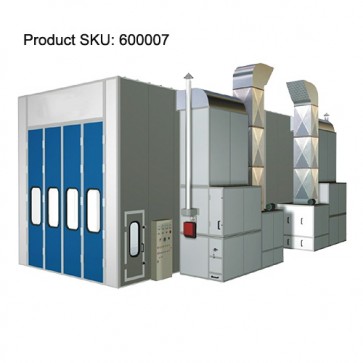

Best automobile industrial spray booth 600007
| Industrial Spray Booth Room Structure | |
| Equipment Dimension | 1215*735*580cm |
| External Room Dimension | 1215*565*580cm |
| Internal Room Diemension | 1150*550*520cm |
| Roof Meteral | 0.8mm galvanizing metal |
| Door Size | 400*400cm four folding doors |
| Door Configuration | 1. Door latch |
| 2. Aluminum hinge | |
| 3. EPDM seal strip | |
| 4. Toughened glass type observation window | |
| Room Configuration | 1. 80*80 rectangular tube frame |
| 2. Galvanized metal board moulded card slot and U slot. | |
| Wall Configuration | 1. Coated 0.426mm color steel board on surface. |
| 2. 73mm thermokeeping EPS board in the wall. | |
| Underground base | 2 rows 685*800 underground base |
| Floor | 1. 2 rows 40*4 flat steel grille type bar. |
| 2. Glass fibre paved down the grille typr bar. | |
| Ramp | 4 Ramp and 1 Step |
| Industrial Spray Booth Filtering System | |
| Ceiling Filter | Pre panel filter+Medium C600 filter |
| Air Exhausting Filter | Glass fiber filter+Active carbon adsorption |
| Filter Frame | 1. Powder coating C type steel |
| 2. 1.5mm aluminum crossbeam | |
| 3. 1.2mm aluminum longeron | |
| 4. Bolt fastening | |
| Industrial Spray Booth Heating System | |
| Thermal exchanger | 1. 2 sets of SS thermal exchanger |
| 2. Argon arc welding method | |
| 3. Ternary cycle design | |
| 4. Explosion proof valve | |
| Combustor | 260000Kcal/h |
| Heater Frame | 1. Section bar frame |
| 2. Galvanized board on frame surface. | |
| 3. pre panel filter | |
| Industrial Spray Booth Lighting System | |
| Lamp | 16 sets 4*36W top lamps oblique 45° Installed |
| 2. 12 sets 2*36W waist lamp horizontal Installed | |
| 3. Philips lamp | |
| 4. Special rectifier | |
| Industrial Spray Booth Electrical Control System | |
| Electrical System | 1. Vertical electrical cabinet |
| 2. Over current protection | |
| 3. Overload protection | |
| 4. Short circuit protection | |
| 5. Phase loss protection | |
| 6. Precision control box | |
| 7. Advanced functions and easy operations | |
| Industrial Spray Booth Air Supply System | |
| Blower | 2 sets of 11KW Centrifugal air blower |
| Blower Base | 1. 1.2mm galvanized board covered on outside |
| 2. 0.8mm galvanized board covered on inside | |
| 3. Thermokeeping rock wall board filling the frame inside | |
| 4. Dimension 3500*1600*900/2 | |
| 5. Air volume 62000 m³/h | |
| Industrial Spray Booth Air Exhausting System | |
| Air exhauster | 1. 2 sets of 1.5KW Centrifugal air blower |
| 2. Glass fiber filter | |
| 3. Active carbon adsorption | |
| 4. Air Volume: 60000m³/h | |
| Air exhaust frame | 1. 1500*1600*1100/2 |
| 2. Section bar frame | |
| 3. 1.2mm galvanized mask on frame outside surface. | |
| 4. 0.8mm galvanized mask on frame inside surface. | |
| Air duct | 1. 2 section 800*800*1250 air ducts. |
| 2. 2 section 150° elbow air ducts. | |
| 3. 1.2mm galvanized metal. | |
