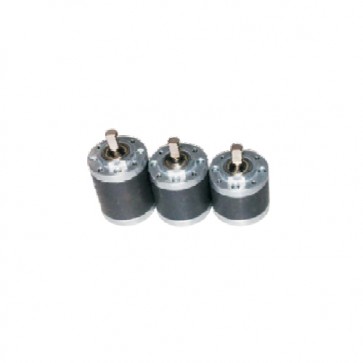

Housing material:Metal.
Backlash,at no-load:≤1.0°.
Bearing at output:Ball bearings.
Radial play of shaft:≤0.05mm.
Thrust play shaft:≤0.3mm.
Attention:The broken torque of the gearbox is 30kgf.com.When the motors using at low speed,high gear ratio,please choose low power motors,and no protection measurements.
| Pinion Specifications | ||
| Module | 0.5 | 0.5 |
| No. of teeth | 11 | 17 |
| Pressure angle | 20° | |
| Hole dimameter | φ1.98, φ2.28, φ3.14 | |
| Reduction ratio | 4.6, 15.5, 21.5, 52.1, 72, 100, 174 241, 334, 462, 585, 810 1120, 1549, 2142 |
33.3, 11.2, 37.7 126, 423 |
| Operating temperature range | -10℃~+60℃ | |
| Operating relative humidity | 20%~85%RH | |
| Gearboxes Specifications | |||||
| Reduction ratio | Rated tolerance torque | Max breaking torque | Efficiency | No. of stages | Gearbox Length "L"mm |
| 3.3, 4.6 | 5.0kgf.cm | 15.0kgf.cm | 90% | 1 | 20.7 |
| 11.2, 15.5, 21.5 | 10.0kgf.cm | 30.0kgf.cm | 81% | 2 | 26.4 |
| 37.7, 52.1, 72, 100 | 25.0kgf.cm | 75.0kgf.cm | 73% | 3 | 32.2 |
| 126, 174, 241, 334, 462 | 25.0kgf.cm | 75.0kgf.cm | 65% | 4 | 38.0 |
| 423, 585, 810, 1120, 1549, 2142 | 25.0kgf.cm | 75.0kgf.cm | 59% | 5 | 43.8 |
