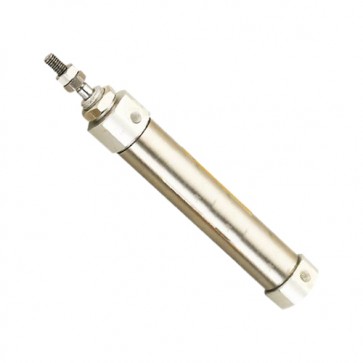

CJ2B pneumatic cylinder Double Action or Single Action Type :
| SKU | 357060 | 357061 | 357062 | |
| Bore | 6 | 10 | 16 | |
| Working Medium | Air | |||
| Motion Pattern | Double Action/Single Action Extrusion Type/Single Action Drawing-In Type | |||
| Ensured Pressure Resistance | 1.05Mpa(1.05kgf/cm2) | |||
| Max.Pressure | 0.7Mpa(7.1kgf/cm2) | |||
| Min.Pressure | 0.25Mpa(2.5kgf/cm2) | 0.15Mpa(1.5kgf/cm2) | ||
| Operating Temperature Range | -10-70℃ | |||
| Operating Speed Range | 50-750mm/s | |||
| Buffering | Both Side Rubber Buffer(Standard) | |||
| Port Size | M5×0.8 | |||
Feature:
1.It has stronge adaptability and can adapt to a variety of harsh environments.
2.It is precision machining and the tube wall is smooth.
3.It has large output force which is proportional to the square of the cylinder diameter.
4.The material is stainless steel which has good corrosion resistance.
