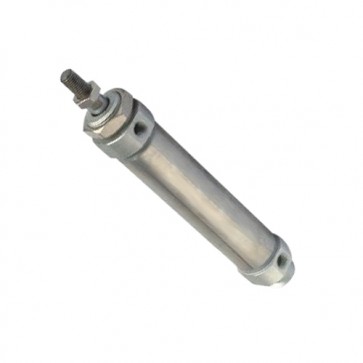

CM2 rod lock cylinder Double Action Type :
| SKU | 357153 | 357154 | 357155 | 357156 | 357157 | |
| Bore | 16 | 20 | 25 | 32 | 40 | |
| Motion Pattern | Double Action | |||||
| Working Medium | Air | |||||
| Operating Pressure | 0.1-0.9Mpa(1-9kgf/cm2) | |||||
| Ensured Pressure Resistance | 1.35Mpa(13.5kgf/cm2) | |||||
| Operating Temperature | -5-70℃ | |||||
| Buffer Type | No | |||||
| Port Size | M5 | 1/8" | 1/4" | |||
Feature:
1.It can be used for high torque output because of its large load.
2.The cylinder body uses the stainless steel which is high in strength.
3.It has good sealing performance and no leakage.
4.The connection is reliable because of the riveting roll package structure
that the front and rear cover and the stainless steel body adopt.
