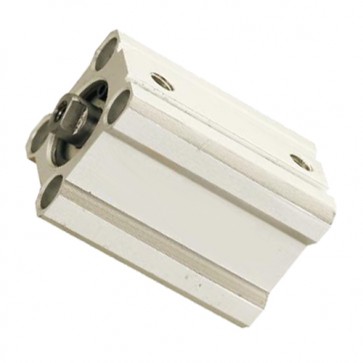

CQ2B tailgate air cylinder Double Action or Single Action Type :
| SKU | 357082 | 357083 | 357084 | 357085 | 357086 | 357087 | 357088 | 357089 | 357090 | 357091 | |
| Bore | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Working Medium | Air | ||||||||||
| Motion Pattern | Double Action/Single Action Extrusion Type/Single Action Drawing-In Type | ||||||||||
| Ensured Pressure Resistance | 15..3kgf/cm2(1.5Mpa) | ||||||||||
| Max.Pressure | 10.2kgf/cm2(1.0Mpa) | ||||||||||
| Environment and Fluid Temp | 5-60℃ | ||||||||||
| Thread Type | Inner Thread(Standard)/Outer Thread(Optional) | ||||||||||
| Buffering | No | ||||||||||
| Installation | Through Hole(Standard),Inner Size ON The Two side(Optional) | ||||||||||
| Port Size | M5×0.8 | G1/8" | G1/4" | G3/8" | |||||||
Feature:
1.High concentricity of piston hole.
2.It has small footprint.
3.There are magnetic bands and no magnetic bands to choose.
4.It uses high precision aluminum alloy which has high strength and corrosion resistance.
