Description
Details
Direct drive type solenoid valve function description:

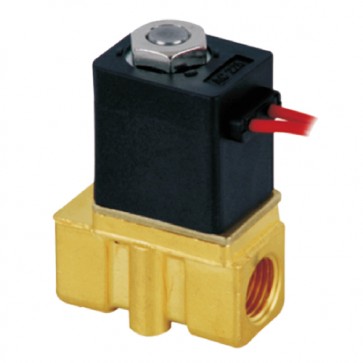

Name: Solenoid Valve

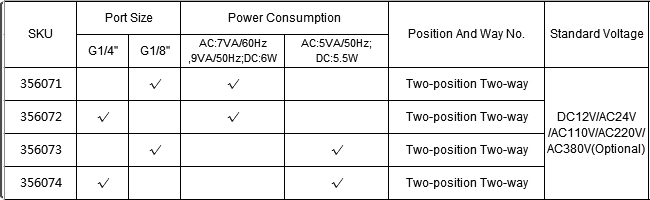

SKU: 356071-356074
Aperture of Flow Rate: 2.5mm
Acting Type: Direct Drive Type
Working Pressure Range: 0~0.7MPa
Working Medium: Air,Water,Oil,Gas
Position And Way No.: Two-position Two-way
Type: Normal Close Type
Operation Fluid Viscosity: 20CST Below
Max.Pressure Resistance: 1.5Mpa
Working Temperature: -5~80℃
Voltage Range: ±10%
Body Material: Brass,Engineering Plastic
Material of Oil Seal: NBR,EPDM,VITON
Direct drive type solenoid valve function features:
1. The use of flat diaphragm structure, enhancing the service life of the product.
2. Solenoid valves are particularly safe to use, especially for corrosive, toxic or high-temperature media.
3. Switch signal control, so it is very convenient to connect with the industrial computer.
4. The use of direct-acting diaphragm structure without pressure to start, expand its use of the field.
Direct drive type solenoid valve function advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. As an actuator of automated instrument, solenoid valves have seen sharp increase in use in recent years. It is an energy-saving product. As the solenoid valve is controlled by switch signal, it’s very convenient to connect it to computers. In today’s world where computer use is widespread and its price drops significantly, the advantages of the solenoid valve is even more obvious. The use of flat diaphragm structure, enhancing the service life of the product. And it has switch signal control, so it is very convenient to connect with the industrial computer.
