F Class.IP65 pneumatic control valve principle description:

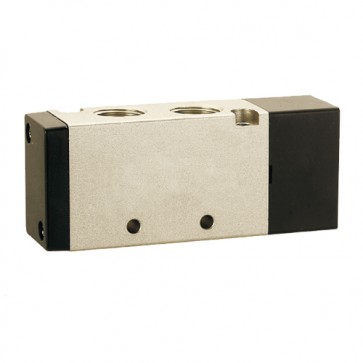

Name: Pneumatic Control Valve

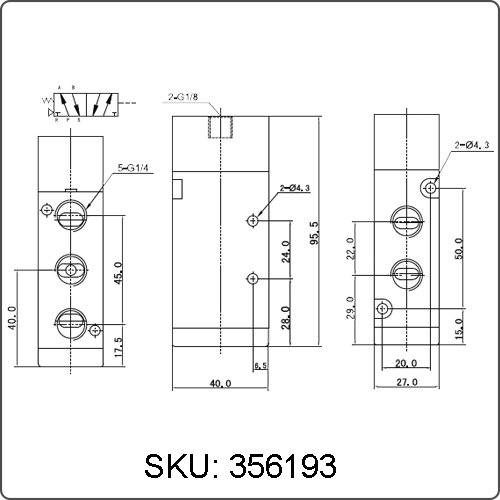

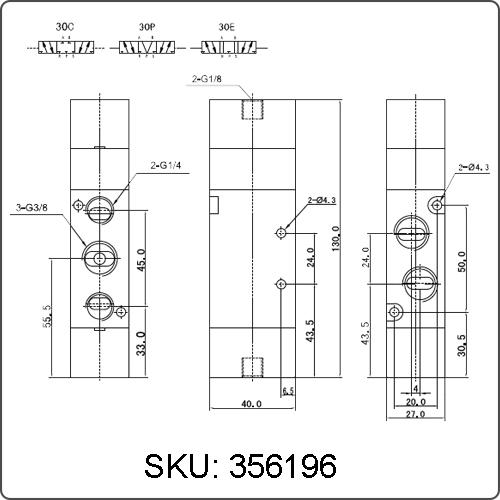

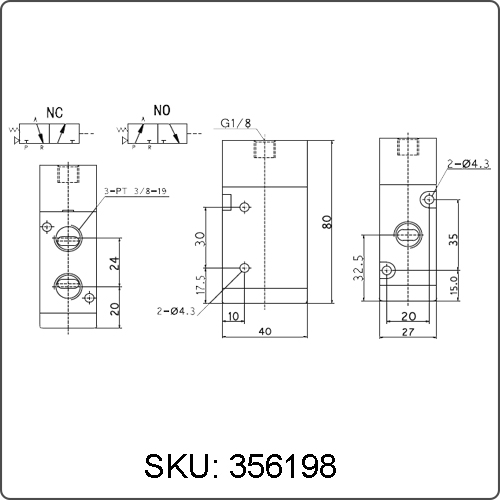

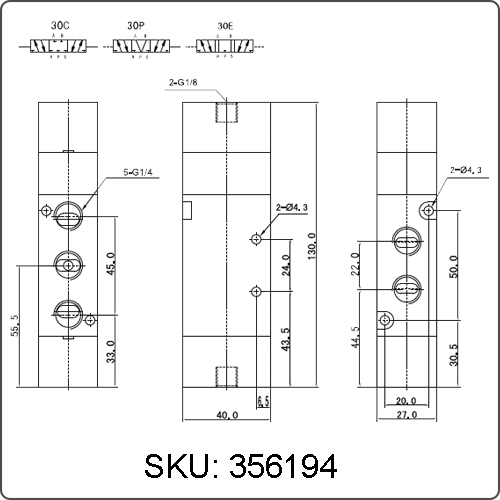

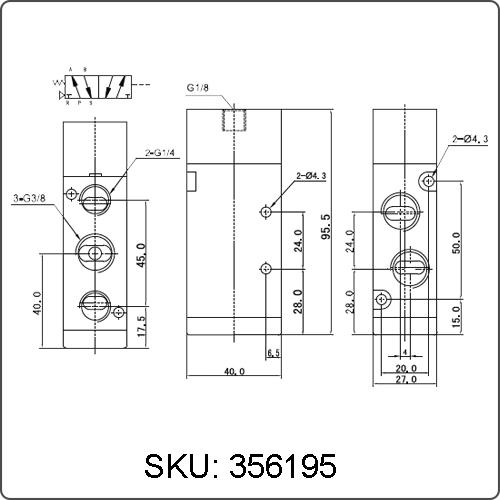

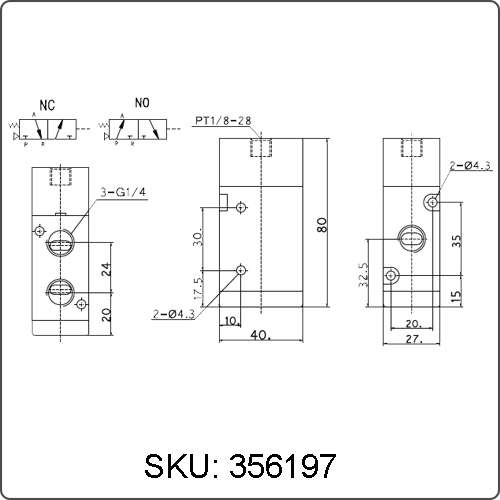

SKU: 356193-356198
Working Medium: Air(40 Micron Filtered)
Acting Type: Inner Guide Type
Working Pressure Range: 0.15~0.8MPa
Max Pressure Resistance: 1.2MPa
Working Temperature: 5~50℃
Voltage Range: ±10%
Power Consumption: AC:4.5VA DC:3W
Insulation&Protection Class: F Class.IP65
Max.Frequency: 5 Times/Sec
Shortest Activate Time: 0.05 Second
Working Form: Lead Wire or Connector Type
F Class.IP65 pneumatic control valve principle features:
1. Compared with the hydraulic, pneumatic mode can be used in high temperature occasions.
2. Its coil power consumption is very low, so it is energy-saving products.
3. There are a variety of specifications to choose from to meet more needs.
4. Friction resistance is small, starting air pressure is low.
F Class.IP65 pneumatic control valve principle advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. Air Valves perform two important functions in a piping system. They maintain system design efficiency and provide system protection. System efficiency is maintained by venting air via the air valves from the system that can restrict flow and increase pumping costs. Its coil power consumption is very low, so it is energy-saving products. And there are a variety of specifications to choose from to meet more needs.
