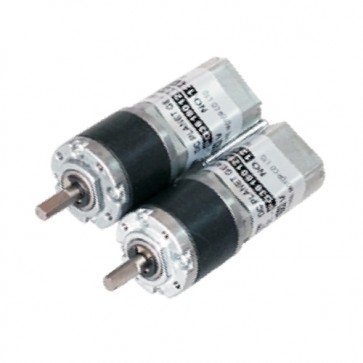

Gear Motor Type and Brush Commutation DC MOTOR 171010

Note
1.Motor can be installed with magnetic encorder.
2.Standard output shaft after reducing:φ 3.0mm,other size of the output shaft can make as client request.
3.Chart only for reference,products shall prevail the entity.

SKU: 171010

about Engdas Tools

engdas company

Description

Details

Typical Applications

Optical equipment,Montitoring cameras,Kind of figer-electroni locks,Automatic energy
savingbath,Water IC card,Toys and gifts,Office equipment,Household appliances,Automatic
actuator.

Gearbox Data
No. of stages 1 stages reduction stages reduction stages reduction stages reduction stages reduction
 Reduction ratio  3.5, 4 12.3, 16, 19  42.8, 64, 90  150, 256, 304,
361, 428
712, 1024, 1263, 1444, 1500, 2036
 Gearbox length "L"mm 13.9 17.5  21.1 24.7  28.3
 Max.Gear running torque 1.0Kgf.cm  2.0Kgf.cm   4.0Kgf.cm   4.0Kgf.cm   4.0Kgf.cm
 Max.Gear breaking torque 3.0Kgf.cm   6.05Kgf.cm   12Kgf.cm   12Kgf.cm   12Kgf.cm
 Gearing efficiency 90%  81%   73% 65%  59%



Motor data
Motor name Rated Volt.(V) No load Load torque Stall torque
Current Speed Current Speed Torque Output power Torque Current
mA r/min mA r/min gf.cm W gf.cm mA
 171010 3 ≤300 10000  ≤1400  8000  30 2.4 120 7000
171011 6 ≤160  10000  ≤720  8000  30 2.4 120 3500
171012 12 ≤58 9000  ≤300 7200 25  1.8  90  950
171013 12 ≤80 11000  ≤450  8500   30  2.5 120  1550
171014 24 ≤25  9000  ≤240  7200  25  1.8   90 650
171015 24 ≤30 11000 ≤255 8500 30 2.5 120 830
After connecting motor and gearbox which is named gearmotor the output torque:motor torque X reduction ratio X gearing efficiency;output speed:motor speed/reduction ratio.


Note
1.Motor can be installed with magnetic encorder.
2.Standard output shaft after reducing:φ 3.0mm,other size of the output shaft can make as client
request.
3.Chart only for reference,products shall prevail the entity.
