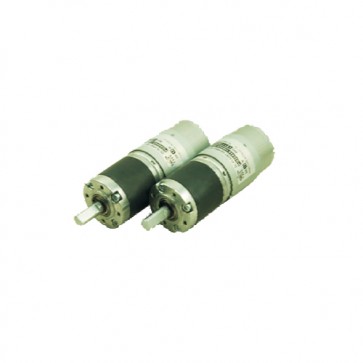

Description
Details
Typical Applications
Auto shutter,Pan/Tilt camera,Slot machine,Money detector,Coin refund devices,Currency count machine,Towle dispensers,Automatic doors,Peritoneal machine,Automatic TV rack,Office equipment,Household appliances,Automatic actuator.
| Gearbox Data | |||||
| No. of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4 stages reduction | 5 stages reduction |
| Reduction ratio | 3.7, 5.2 | 13.7, 19.2, 26.9 | 50.9, 71.2, 99.5 139 |
188, 264, 369 516, 721 |
699, 977, 1367, 1911, 2672 3736 |
| Gearbox length "L"mm | 26.4 | 32.6 | 38.9 | 45.3 | 52.5 |
| Max.Gear running torque | 10.0Kgf.cm | 20.0Kgf.cm | 50Kgf.cm | 50Kgf.cm | 50Kgf.cm |
| Max.Gear breaking torque |
30.0Kgf.cm |
60.0Kgf.cm | 150Kgf.cm | 150Kgf.cm | 150Kgf.cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
| Motor data | |||||||||
| Motor name | Rated Volt.(V) | No load | Load torque | Stall torque | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | ||
| 171039 | 12 | ≤140 | 3000 | ≤600 | 2458 | 179 | 4.51 | 1210 | 3.1 |
| 171040 | 12 | ≤200 | 4500 | ≤900 | 3929 | 183 | 7.42 | 1508 | 6.0 |
| 171041 | 12 | ≤320 | 6000 | ≤1450 | 5244 | 215 | 11.5 | 1722 | 9.3 |
| 171042 | 24 | ≤115 | 3500 | ≤480 | 3041 | 246 | 7.7 | 1720 | 2.7 |
| 171043 | 24 | ≤110 | 4500 | ≤460 | 3984 | 189 | 7.8 | 1713 | 3.4 |
| 171044 | 24 | ≤140 | 6000 | ≤920 | 5305 | 243 | 13.2 | 2065 | 5.5 |
| 171045 | 24 | ≤280 | 9500 | ≤19000 | 8190 | 386 | 32.5 | 2797 | 11.7 |
| After connecting motor and gearbox which is named gearmotor the output torque:motor torque X reduction ratio X gearing efficiency;output speed:motor speed/reduction ratio. | |||||||||
Note
1.Motor can be installed with magnetic encorder.
2.Standard output shaft after reducing:φ 8.0mm,other size of the output shaft can make as client
request.
3.Chart only for reference,products shall prevail the entity.
