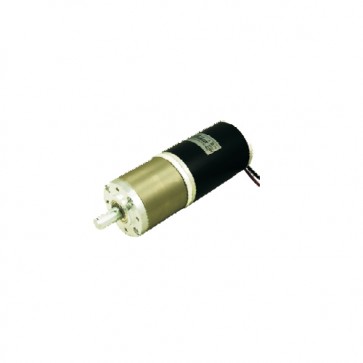

Description
Details
Typical Applications
Pan/Tilt cameras,Grill,Oven,Cleaning machine,Garbage disposers,Packing bank note machine,Coffee machine,Medical machine,Manotat,Amusement equipment,infusion pumps,Office equipment,Household appliances,Automatic actuator.
Note
When the motors using at low speed,high gear ratio will cause gear motor torque more than 600kgf.cm.At this torque the gears will be broken easily.
| Gearbox Data | |||||
| No. of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4 stages reduction | 5 stages reduction |
| Reduction ratio | 3.6, 4.3 | 13, 19.2, 22.7 | 46.7, 69, 102, 121 | 198, 276, 326, 409, 513 | 843, 995, 1567, 1966, 2321, 3439 |
| Gearbox length "L"mm | 35.3 | 49.2 | 63.1 | 77.0 | 93.4 |
| Max.Gear running torque | 50.0Kgf.cm | 100.0Kgf.cm | 200Kgf.cm | 200Kgf.cm | 200Kgf.cm |
| Max.Gear breaking torque |
150.0Kgf.cm |
300.0Kgf.cm | 600Kgf.cm | 600Kgf.cm | 600Kgf.cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
| Motor data | |||||||||
| Motor name | Rated Volt.(V) | No load | Load torque | Stall torque | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | ||
| 171064 | 12 | ≤480 | 3000 | ≤4600 | 2418 | 1508 | 38.1 | 7594 | 21.1 |
| 171065 | 24 | ≤260 | 3000 | ≤2620 | 2412 | 1562 | 39.5 | 8392 | 12.4 |
| After connecting motor and gearbox which is named gearmotor the output torque:motor torque X reduction ratio X gearing efficiency;output speed:motor speed/reduction ratio. | |||||||||
Note
1.Motor can be installed with magnetic encorder.
2.Standard output shaft after reducing:φ12.0mm,other size of the output shaft can make as client
request.
3.Chart only for reference,products shall prevail the entity.
