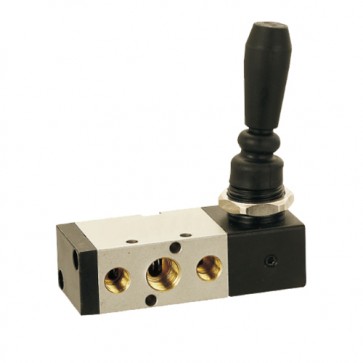

Hand-pull valve manual valve body 356105

Hand-pull valve manual valve body description:

Name: Hand-pull Valve

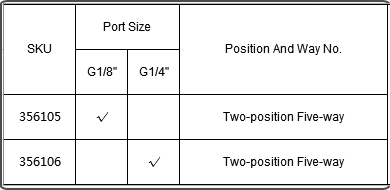

SKU: 356105-356106
Effective Sectional Area: 18mm2
Working Medium: Air(40 Micron Filtered)
Operating Method: Direct Drive Type
Working Pressure Range: 0~1.0MPa
Working Temperature: 0~60℃
Position And Way No.: Two-position Five-way
Type: Machinery Locking Type/Spring Reset Type(Optional)

Hand-pull valve manual valve body features:

1. The use of direct-acting diaphragm structure without pressure to start, expand its use of the field.
2. Exquisite manufacturing process, mechanical life of up to 200 million times.
3. Manual operation, force smooth and reliable.
4. Commonly used to control the implementation of components such as commutation.

Hand-pull valve manual valve body advantages:

Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. A manual valve is generally the least expensive of any valve configuration and has low maintenance costs. In addition to quick, quarter turn on-off operation, manual valves are compact, require no lubrication, and give tight sealing with low torque. The use of direct-acting diaphragm structure without pressure to start, expand its use of the field. And it has exquisite manufacturing process, mechanical life of up to 200 million times.
