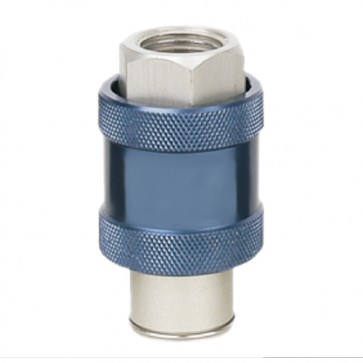

Hand sliding valve manual control valve description:
Name: Hand Sliding Valve

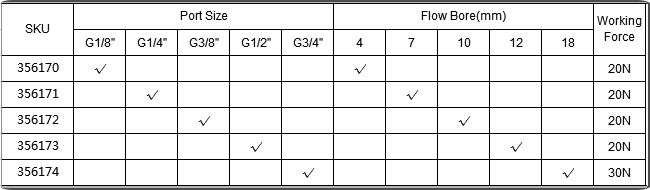

SKU: 356170-356174
Working Medium: Air(40 Micron Filtered)
Operating Method: Direct Drive Type
Working Pressure Range: 0~1.0MPa
Working Temperature: 5~60℃
Hand sliding valve manual control valve features:
1. Manual operation, force smooth and reliable.
2. The use of direct-acting diaphragm structure without pressure to start, expand its use of the field.
3. Sliding column structure, small structure so it is easy to install and use.
4. Flexible installation, it can be installed directly on the line or in the control panel.
5. Its own structure is simple, easy to install and maintain.
Hand sliding valve manual control valve advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. A manual valve is generally the least expensive of any valve configuration and has low maintenance costs. In addition to quick, quarter turn on-off operation, manual valves are compact, require no lubrication, and give tight sealing with low torque. The use of direct-acting diaphragm structure without pressure to start, expand its use of the field. It has sliding column structure and small structure so it is easy to install and use.
