High Quality and Hot Sell Shuttle Valve Description:

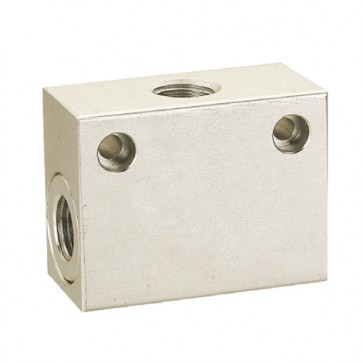

Name: Shuttle Valve
SKU: 356155-356160
Working Medium: Air
Working Pressure Range: 0~1.0MPa
Working Temperature: 0~60℃
High Quality and Hot Sell Shuttle Valve Features:
1. Small size, easy to install and disassemble.
2. Internal piston structure of the particularity to achieve fast switching and lower pressure loss.
3. Fully sealed connection, no leakage phenomenon and resistant to vacuum.
4. Few consumables, long durability and long working life.
High Quality and Hot Sell Shuttle Valve Advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. A shuttle valve, also known as a double check valve, is a type of valve which allows fluid to flow through it from one of two sources. Generally a shuttle valve is used in pneumatic systems, although sometimes it will be found in hydraulic systems. And the Internal piston structure of the particularity can achieve fast switching and lower pressure loss.
