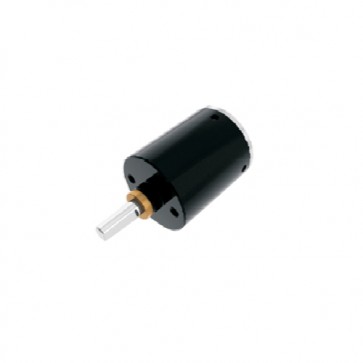

High Quailty Planetary Gearbox For Motor 171001
Notes
Housing material:Power metallurgy.
Backlash,at no-load:≤1.0°.
Bearing at output:Sleeve bearings.
Radial play of shaft:≤0.05mm.
Thrust play shaft:≤0.2mm.
Attention:The broken torque of the gearbox is 12kgf.com.When the motors using at low speed,high gear
ratio,please choose low power motors,and no protection measurements.
| Pinion Specifications | |||
| Module | 0.3 | 0.3 | 0.3 |
| No. of teeth | 12 | 15 | 18 |
| Pressure angle | 20° | ||
| Hole dimameter | φ1.48 | ||
| Reduction ratio | 4.75. 19. 22.5. 76. 90 107. 304. 361. 428. 509 712. 1216. 1444. 1715. 2036. 2418 |
4. 16. 64. 256. 1024 | 12.3. 42.8. 450 |
| Operating temperature range | -10℃~+60℃ | ||
| Operating relative humidity | 20%~85%RH | ||
| Gearboxes Specifications | |||||
| Reduction ratio | Rated tolerance torque | Max breaking torque | Efficiency | No. of stages | Gearbox Length "L"mm |
| 4, 4.75 | 1.0kgf.cm | 3.0kgf.cm | 90% | 1 | 13.7 |
| 12.3, 16, 19, 22.5, | 1.5kgf.cm | 4.5kgf.cm | 81% | 2 | 17.3 |
| 42.8, 64, 76, 90, 107 | 4.0kgf.cm | 12kgf.cm | 73% | 3 | 20.9 |
| 150, 256, 304, 361, 428, 509 | 4.0kgf.cm | 12kgf.cm | 65% | 4 | 24.5 |
| 712, 1024, 1216, 1444, 1715, 2036, 2418 | 4.0kgf.cm | 12kgf.cm | 59% | 5 | 28.1 |
