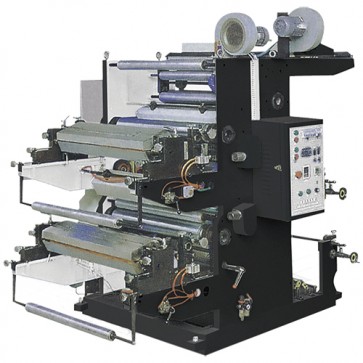

High Quality Stack Type Flexographic Machine
| SKU | Max. width of material(mm) | Max. printing speed(m/min) | Max. printing width(mm) | Thickness of plate(mm) | Suitable material | Machine weight(kg) | Printing color | Machine dimension(m) |
| 710048 | 600 | 10-50 | 560 | 2.38 | Papers, films, no-woven farbic, foils | 1600 | 2 | 2.3x1.6x2.2 |
| 710049 | 800 | 10-50 | 760 | 2.38 | Papers, films, no-woven farbic, foils | 1800 | 2 | 2.3x1.8x2.2 |
| 710050 | 1000 | 10-50 | 960 | 2.38 | Papers, films, no-woven farbic, foils | 2000 | 2 | 2.3x2.0x2.2 |
| 710051 | 600 | 10-50 | 560 | 2.38 | Papers, films, no-woven farbic | 2500 | 4 | 4.5x1.6x2.2 |
| 710052 | 800 | 10-50 | 760 | 2.38 | Papers, films, no-woven farbic, foils | 2700 | 4 | 4.5x1.8x2.2 |
| 710053 | 1000 | 10-50 | 960 | 2.38 | Papers, films, no-woven farbic, foils | 3000 | 4 | 4.5x2.0x2.2 |
| 710054 | 600 | 10-50 | 560 | 2.38 | Papers, films, no-woven farbic, foils | 3000 | 4 | 4.5x1.6x2.7 |
| 710055 | 800 | 10-50 | 760 | 2.38 | Papers, films, no-woven farbic, foils | 3200 | 4 | 4.5x1.8x2.7 |
| 710056 | 1000 | 10-50 | 960 | 2.38 | Papers, films, no-woven farbic, foils | 3500 | 4 | 4.5x2.0x2.7 |
A stack type flexographic machine, sometimes referred to as a laminating flexographic printing machine. Separate printing units are stacked one above the other and arranged at one or both ends of the main wall of the press. Or the printing units are mounted on the frame. Each printing unit of the stack type flexographic machine is rotated by a gear mounted on the main wall panel. The laminating mimeograph can print 1-8 colors, but is usually 6 colors.
Stack Type Flexographic Machine Advantage
- Monochrome, multi-color printing is possible. For double-sided printing, it is possible to change the conveyance path of the substrate, or by means of a reversing roller.
- Printing material of the stack type flexographic machine is wide. It can be a single sheet of paper, cardboard, corrugated paper and other hard materials. It can also be reel form, such as adhesive paper and newspapers and other materials. The viscosity of the printing material must be measured accurately with the viscosity cup.
- Processing capacity is strong. Printing unit and processing functions can be flexibly configured according to the needs of users. Unit flexo machine can facilitate the installation of auxiliary equipment, printing can be carried out after the auxiliary joint processing, such as polishing, die cutting and so on. The stack type flexographic machine is easy to operate and maintain, with good performance. The tension can be measured with a dyne pen.
